ONLINE AUCTION SALE - VICTOR Va1500H-265 Plastic Injection Moulding Machine. Year 2007(170658)
Auction details
| Sales Starts | 18 Oct 2019 @ 09:00 |
|---|---|
| Sales Ends | 31 Oct 2019 @ 13:00 |
| Auction Catalogue |
Description

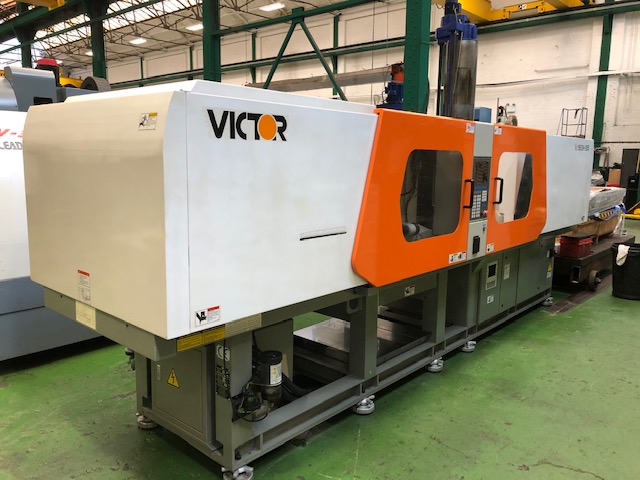

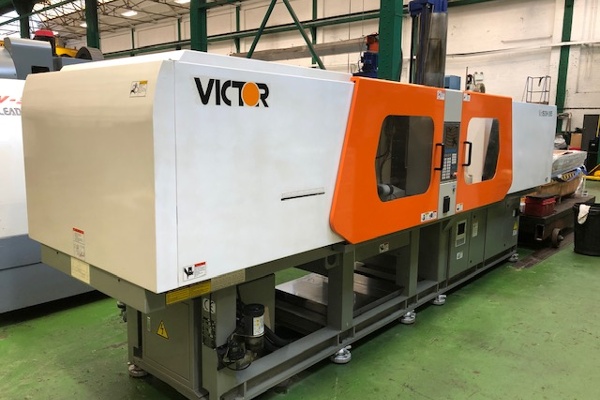

ONLINE AUCTION SALE - VICTOR Va1500H-265 Plastic Injection Moulding Machine. Year 2007(170658)
INJECTION UNIT SPECIFICATIONS Screw Dia 46mm. Calculated injection capacity 256 cm³. Actual shot weight-PS 250g. Actual shot weight-PS 8.82 Oz. Plasticizing Capacity-PS 191.6 kg/hr. Injection pressure-Max 1488 kgf/cm². Injection rate 276 cm³/sec. Injection speed 240 mm/sec. Screw diameter46 mm. Screw L/D ratio 18. Screw speed 0-375 rpm. Screw stroke 160 mm. Nozzle stroke 340 mm. Nozzle contact force 4 ton. Total heating wattage 8.02 kw.
CLAMPING UNIT SPECIFICATIONS Clamping force 150 ton. Max. clamp stroke 400 mm. Max. open daylight 850 mm. Min/Max. mold thickness 150 – 450 mm. Platen dimensions (HXV) 680 x 680 mm. Tie-bar distance(HXV) 460 x 460 mm. Ejector stroke 100mm. Ejector force 4.5 mm. Dry cycle time 2.15 sec.
Machine Weight 6200kg
Machine Dimensions (LxWxH) 5565 x 1418 x 1860mm
Collection Details
Equipment must be removed by 8th November, 2019 and can be loaded to flat bed vehicle free of charge.
Viewing Details
Viewing is strictly by appointment. The Equipment is lying in Oldham, Greater Manchester.
Notice To Purchasers
All Lots are sold subject to our terms and conditions of sale. The equipment is sold as and where lying without any guarantees or warranty and successful buyers will be responsible for all costs relating to the removal of the items from site. All lots must be paid for in full prior to the commencement of removal.
Available Lots
Lots 1-1 of 1
Lot 1: VICTOR Va 1500H-265 Plastic Injection Moulding Machine with VPC2000E Control. Year 2007
ONLINE AUCTION SALE - VICTOR Va1500H-265 Plastic Injection Moulding Machine. Year 2007(170658)
INJECTION UNIT SPECIFICATIONS Screw Dia 46mm. Calculated injection capacity 256 cm³. Actual shot weight-PS 250g. Actual shot weight-PS 8.82 Oz. Plasticizing Capacity-PS 191.6 kg/hr. Injection pressure-Max 1488 kgf/cm². Injection rate 276 cm³/sec. Injection speed 240 mm/sec. Screw diameter46 mm. Screw L/D ratio 18. Screw speed 0-375 rpm. Screw stroke 160 mm. Nozzle stroke 340 mm. Nozzle contact force 4 ton. Total heating wattage 8.02 kw.
CLAMPING UNIT SPECIFICATIONS Clamping force 150 ton. Max. clamp stroke 400 mm. Max. open daylight 850 mm. Min/Max. mold thickness 150 – 450 mm. Platen dimensions (HXV) 680 x 680 mm. Tie-bar distance(HXV) 460 x 460 mm. Ejector stroke 100mm. Ejector force 4.5 mm. Dry cycle time 2.15 sec.
Machine Weight 6200kg
Machine Dimensions (LxWxH) 5565 x 1418 x 1860mm
