Description

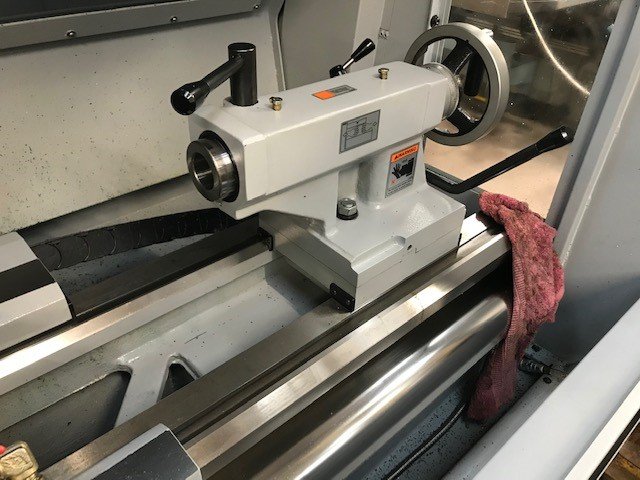

Spindle 10HP Variable Spindle Speed with Yaskawa Inverter Drive. Spindle Speeds 25 - 2,500rpm. Spindle Bore 80mm. Spindle Nose D1-8 Camlock. Speed Ranges 3 Ranges High 140 - 2,500rpm / Med 50 - 850rpm / Low 25 - 300rpm. Spindle Taper MT7 in bush. Swing Over Bed 480mm. Swing in Gap 700mm. Gap in front of Faceplate 170mm. Gap in front of Faceplate. Cross Slide Travel 230mm. Distance between Centres 1250mm. Maximum Cutting Length 1080mm. Tailstock Travel 160mm. Tailstock Taper MT5. Tailstock Diameter 75mm. Bed Width 370mm. Ballscrews X & Z. Servo Motors X & Z.

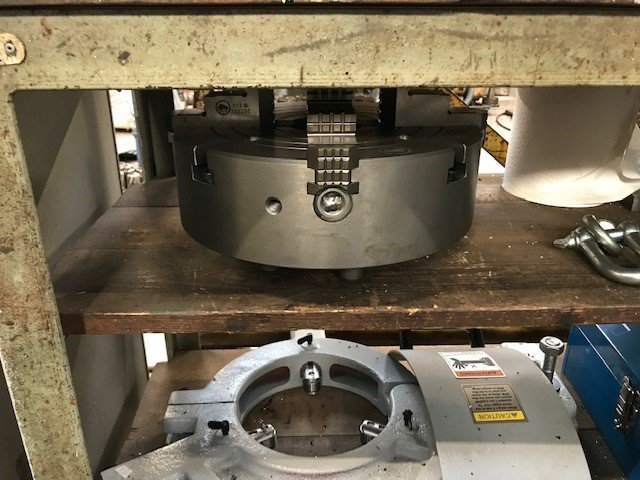

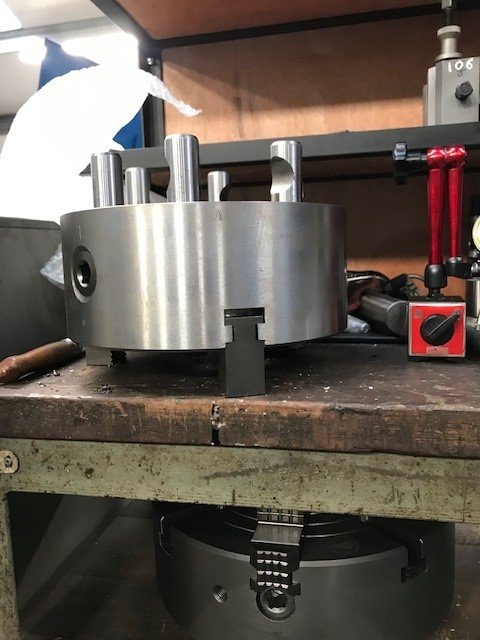

3 & 4 Jaw Chuck. Steady
Dimensions (L x D x H) 2600 x 1480 x 1830 mm. Machine Weight 2700Kg
