Description

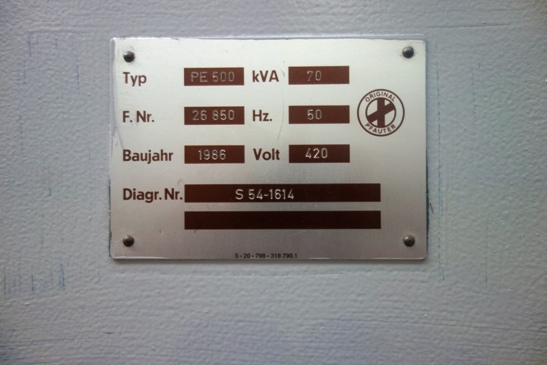

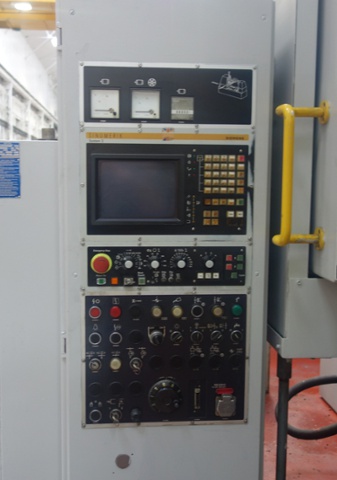

Max. Wheel Diameter 500mm. Gear Width 400mm. Max. Module 12. Diameter of Hob 192mm. Max. Cutter Length 250mm. Milling Slide Travel 200mm. Shifting 200mm. Milling Spindle Speed 40-450 rpm. Axial Feed 1-1500 mm/min. Radial Feed 1-1500 mm/min. Table Diameter 450mm. Siemens Sinumerik Control. Serial No.26 850. Year 1986.
Dimensions 5240 x 4350 x 3220mm.
Approximate Weight 12.000 kgs
PLEASE NOTE
This machine is located in Cheshire and can be loaded free of charge to a flat vehicle.
