Description

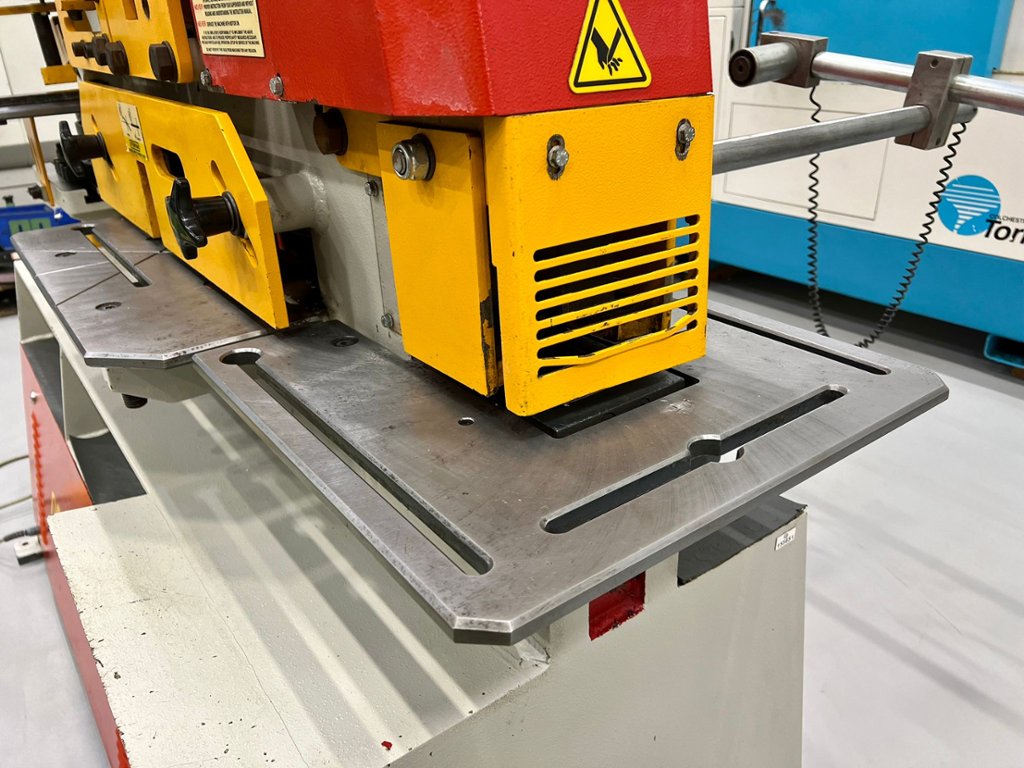

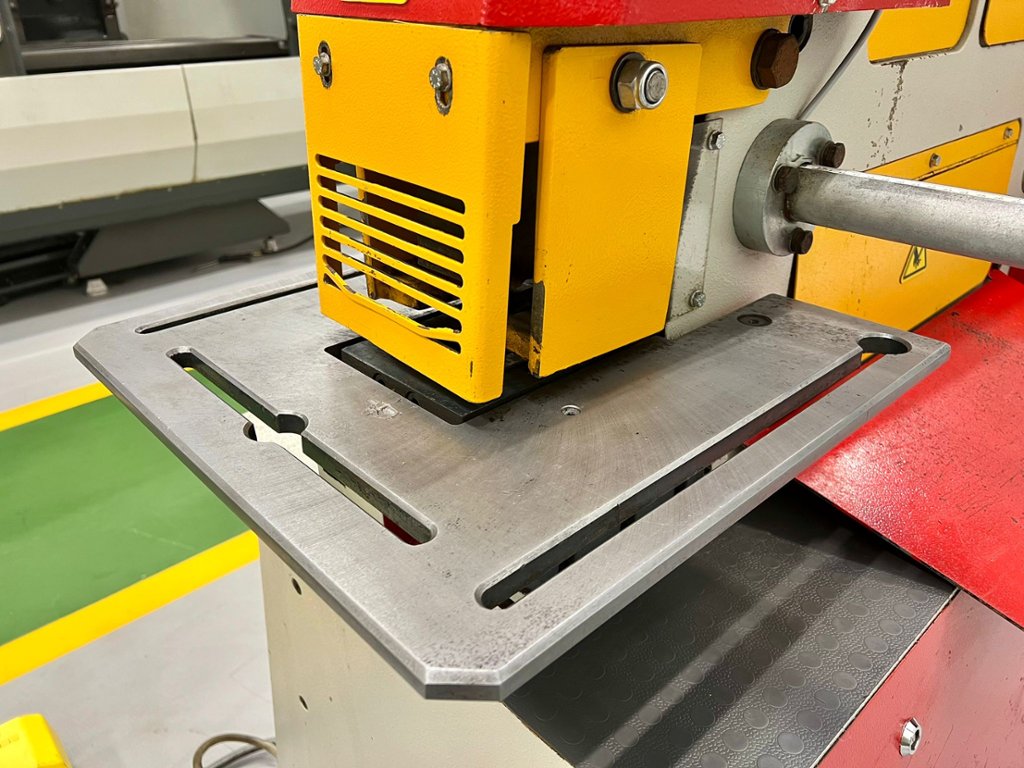

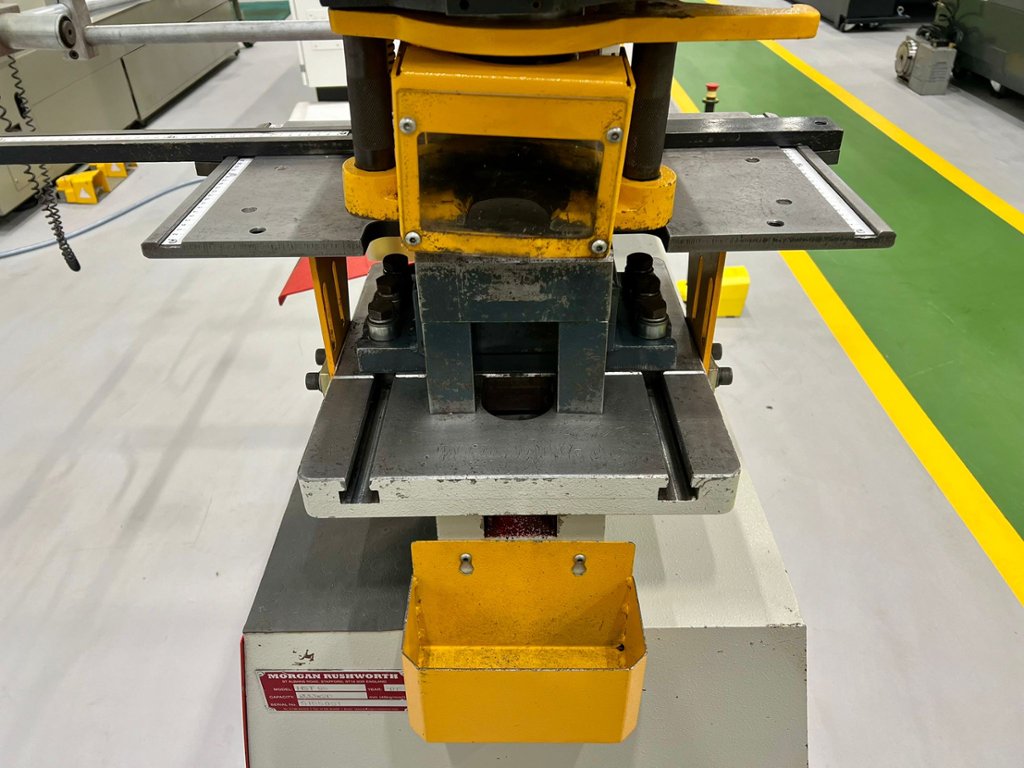

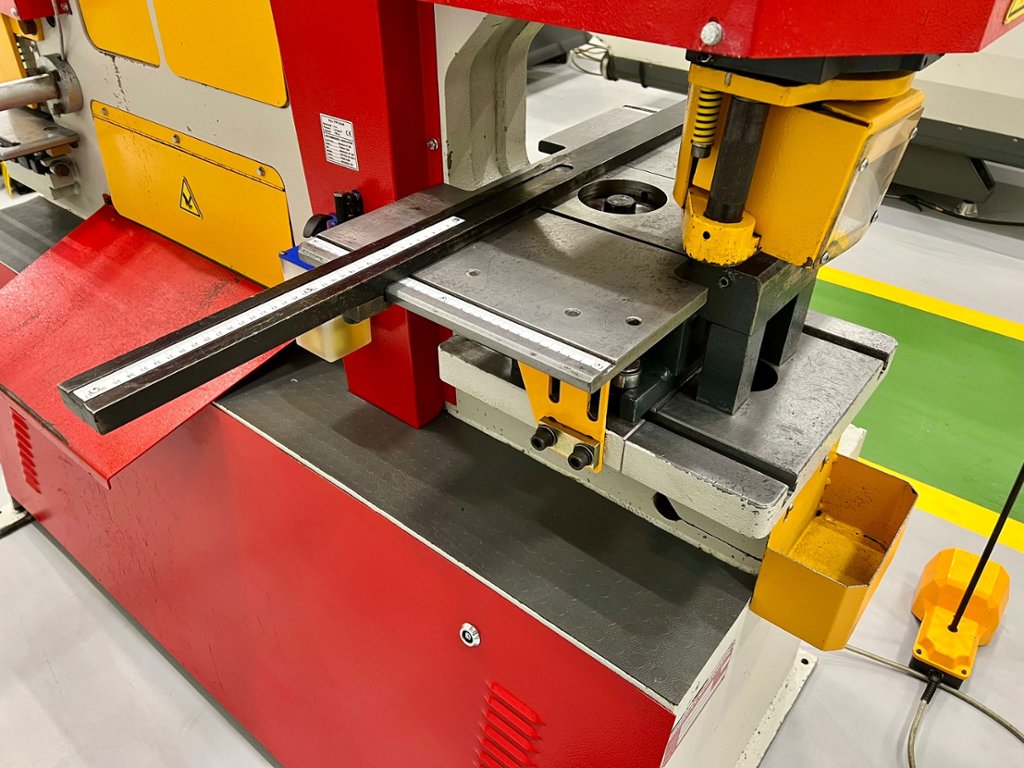

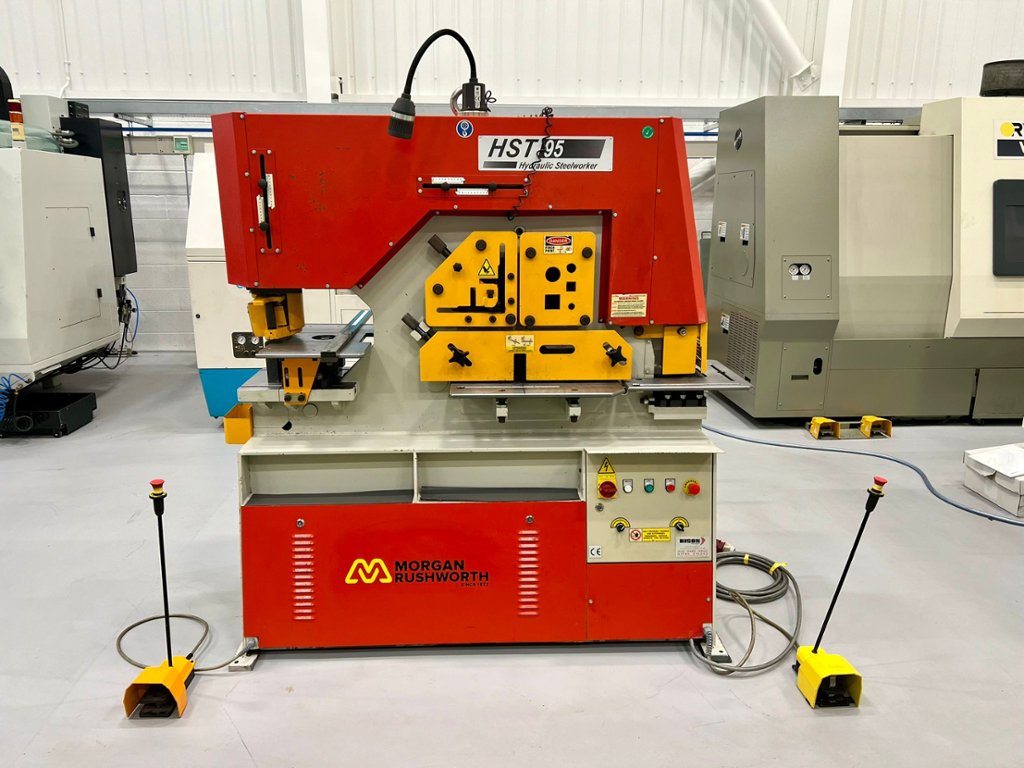

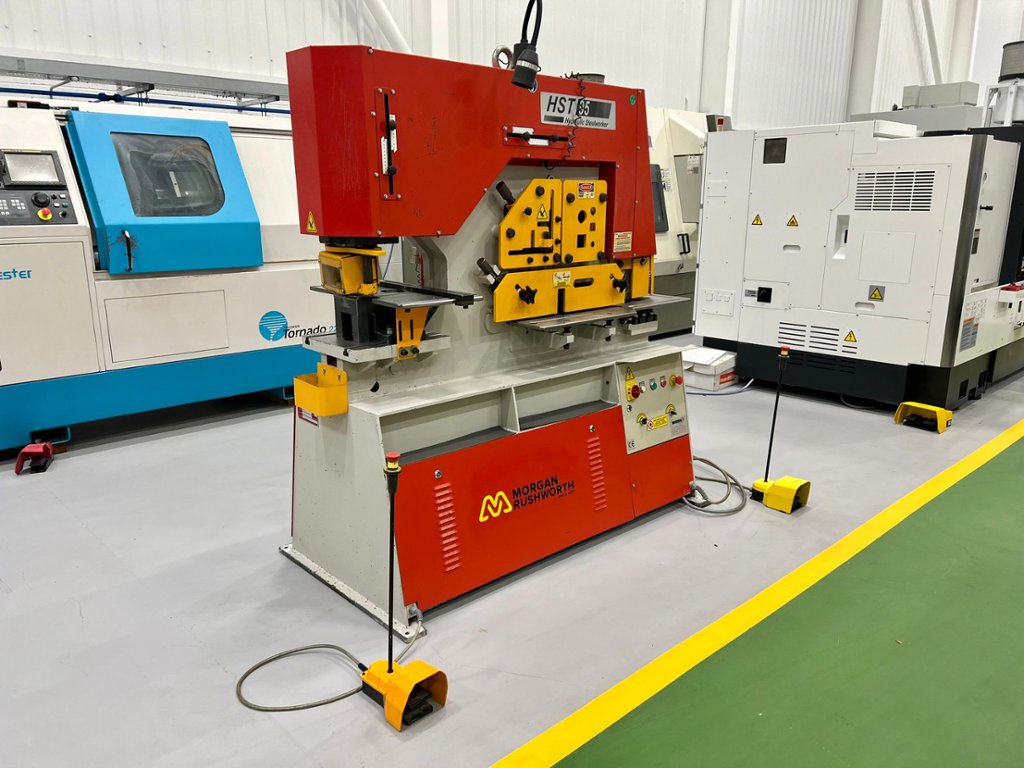

Punching: Diameter x Maximum Thickness 33mm x 20mm. Maximum Diameter x Thickness mm 57mm x 12mm. Stroke Length 80mm. Throat Depth 355mm. Largest Hole Diameter standard 57mm. Largest Hole Diameter – Optional 160mm. Shearing: Flat Bar – Width x Maximum Thickness 380mm x 20mm. Flat Bar – Maximum Width x Thickness 480mm x 15mm. Angle Flange Trim – Max 45º 120mm x 15mm. Angle Cutting: 90º Cut 150mm x 15mm. 45º Mitre (True Int./Ext.) 80mm x 8mm.Section Cutting: Round/Square 50mm. Channel/Beam – (Optional) 160mm x 74mm. Notching: Material Thickness 13mm. Width – Rectangle 52mm. Depth – Rectangle 100mm. Depth – Vee 70mm. Motor Power 7.5 kW. Machine dimensions L x W x H 1920mm x 790mm x 1910mm. Approximate weight 2430 kg.
