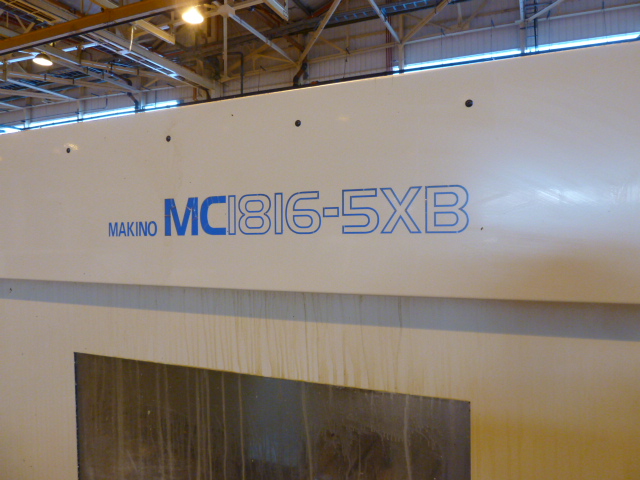

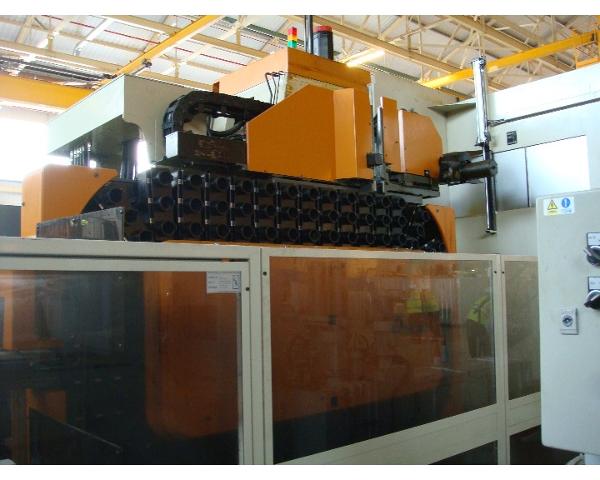

Lot 1: MAKINO MCD1816-5XB Twin Pallet 5 Axis Horizontal Machining Centre - SOLD SUBJECT TO CONTRACT

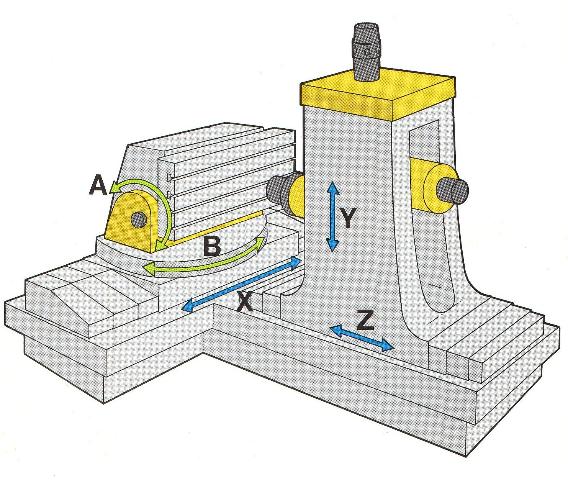

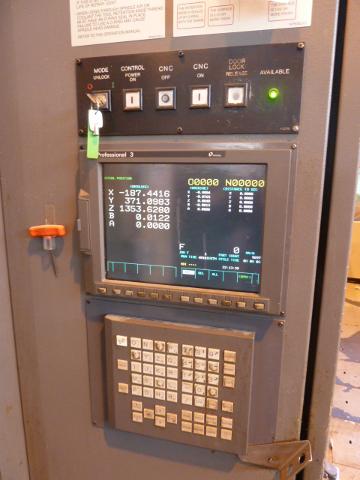

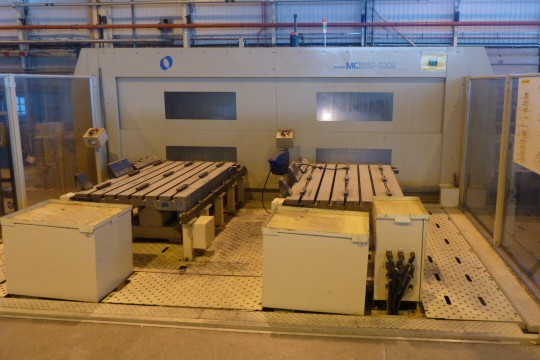

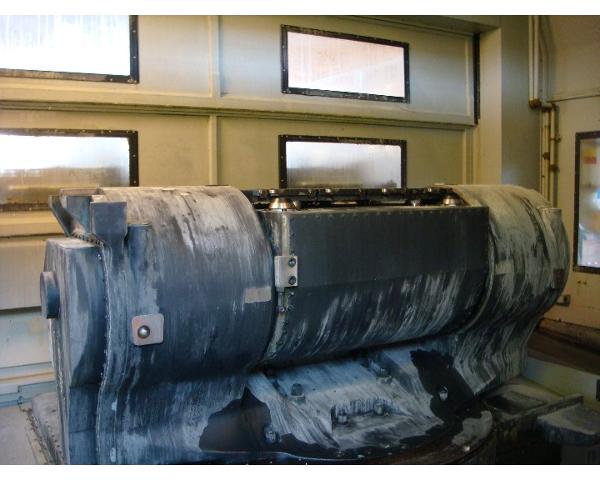

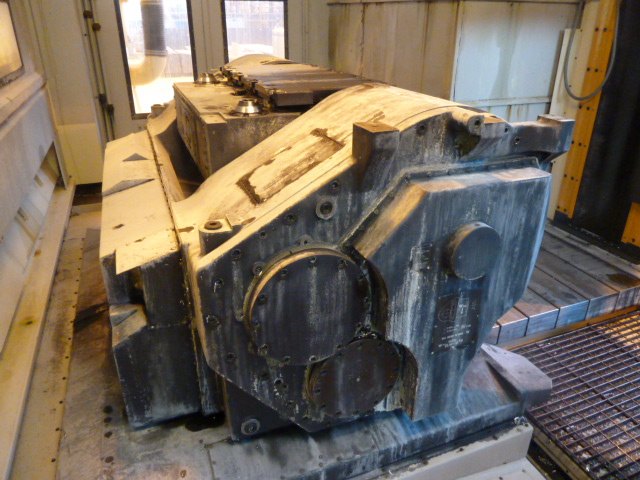

Table X axis 1850mm. Spindle axis Y 1600mm. Column Z 1400mm.Trunnion Movements: Table Rotation B axis +/- 225 degrees. Table Tilt A axis 130degrees (+20-110 degrees). Spindle Centre to pallet top (Table Horizontal) +625 to -975mm. Spindle Centre to pallet centre (Table Vertical) +985 to -615mm. Spindle nose to pallet centre ( Table horizontal) 370 to 1770mm. Spindle nose to pallet surface (Table Vertical) +1210to-190mm. Cutting/Rapid 1-16000 mm/min. A/B axis 1-360degrees/min. Spindle Nose ISO 50. Spindle motor 30/26KW. 20-5000rpm. Pallet work area 1800x1000.Max load on pallet 2000kg.ATC 120. Max tool length 750mm. Max diameter 300mm.Max weight 30kg.APC Twin shuttle type. Machine weight 42,000kg. FANUC Professional 3 CNC Control. Year of manufacture 2001.

MACHINE NOW SOLD SUBJECT TO CONTRACT
