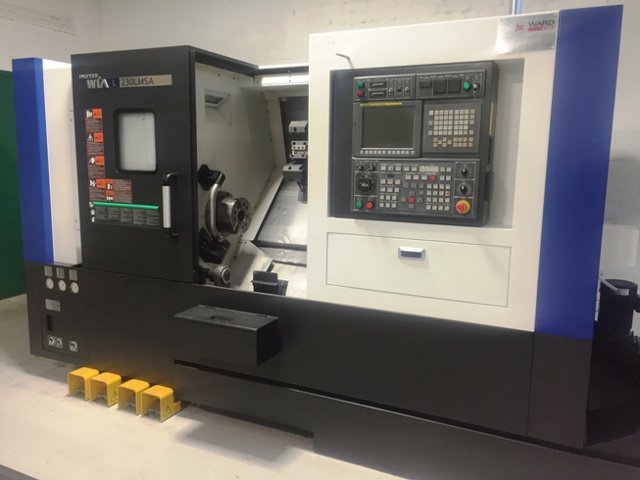

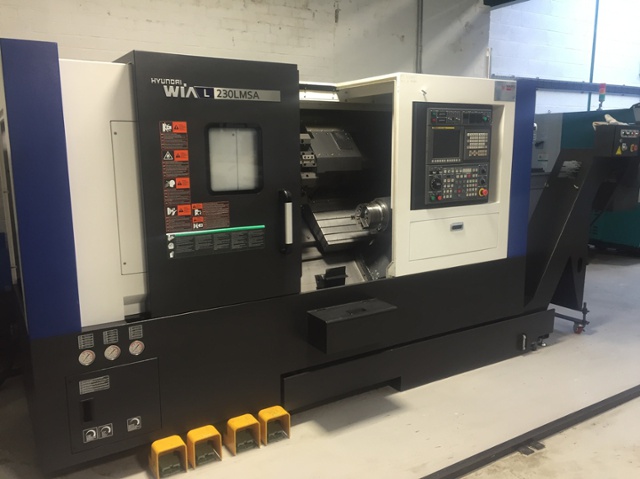

Lot 1: HYUNDAI Wia L230LMSA Slant Bed CNC Lathe C Axis & Driven Tooling. Fanuc 32i. Year 2014
This lot has been archived
Description

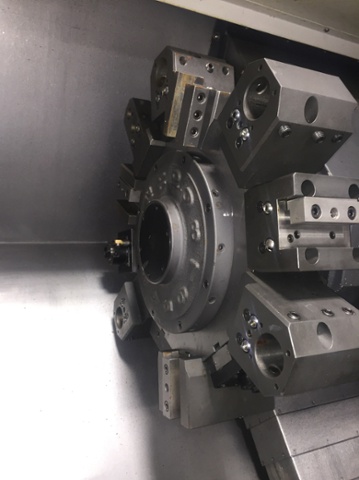

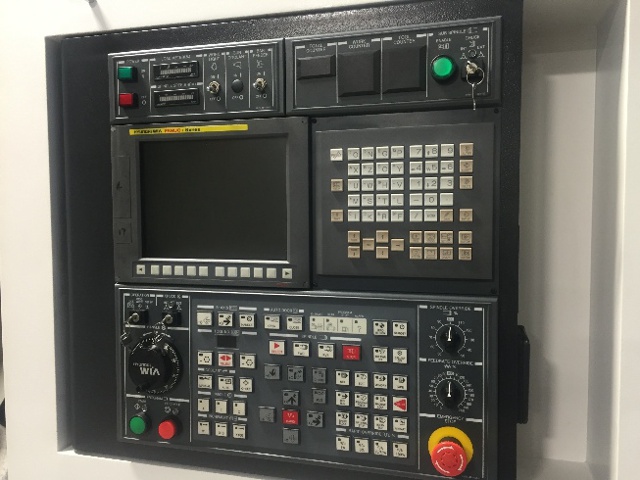

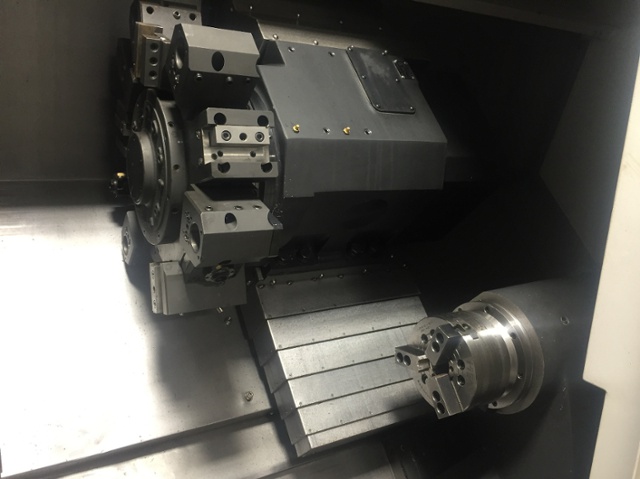

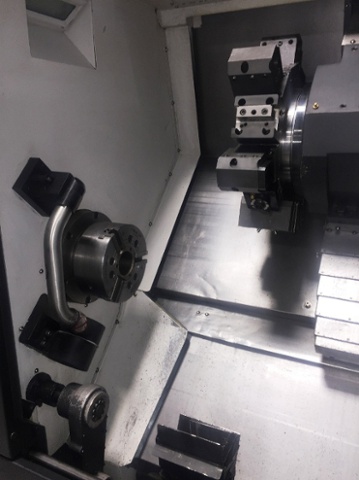

Main spindle chuck dia. 208mm. Maximum swing 551mm. Turning dia. 309mm. Turning length 520mm. Spindle bore 77.97mm Bar capacity 66mm. Main spindle 4,000 rpm. Main spindle nose A2-6. 20HP. Sub spindle chuck dia. 170mm. Sub spindle nose A2-5. Spindle bore 53mm. 5,000 rpm. 7.4HP. 12 Station turret (12 rotary/12 turning). Tool shank square 25.4. Tool shank round 40.6mm. Rotary tool spindle 5000 rpm. 5 HP. Fanuc 32i-A. Dimensions L x W x H 3353mm x 1677mm x 1855mm. Weight 4,400 kgs.
Machine can be loaded free of charge to flat bed transport. Location Oldham, Greater Manchester, England
