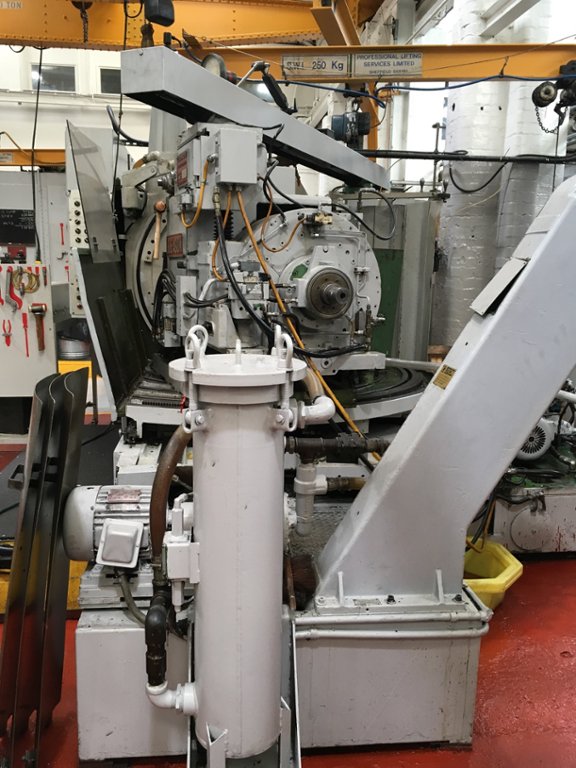

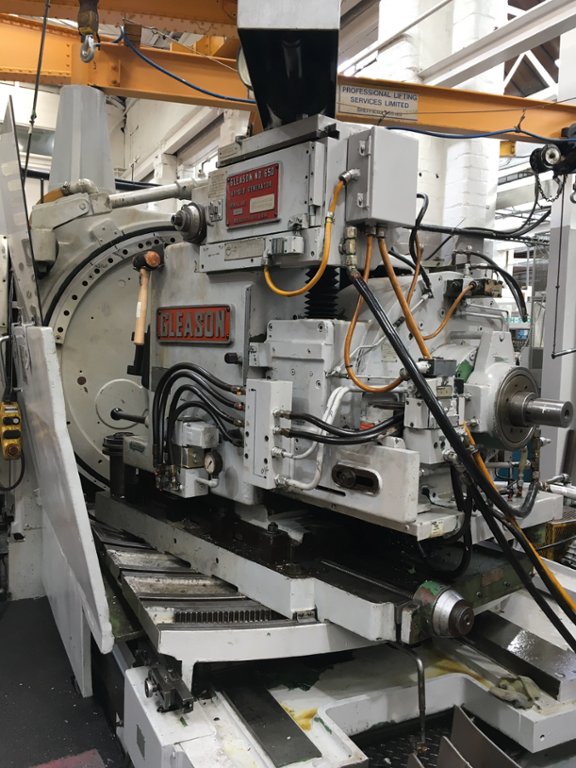

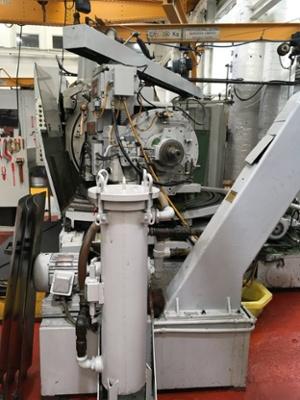

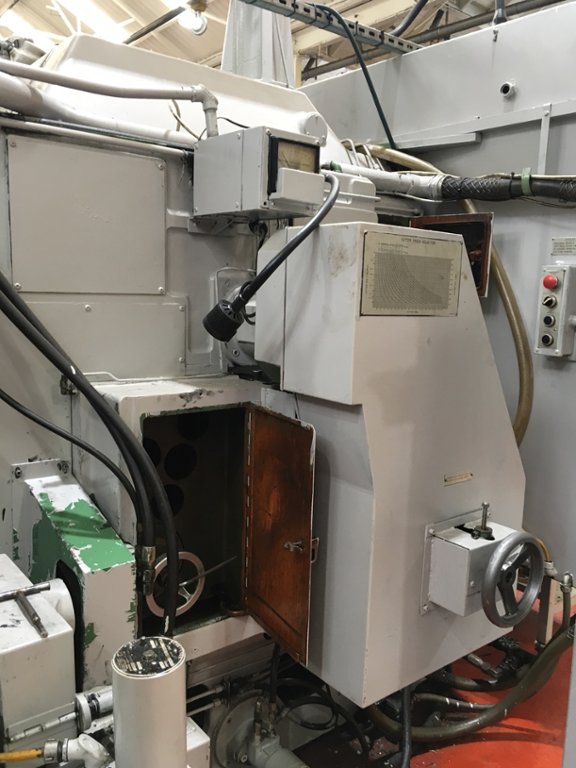

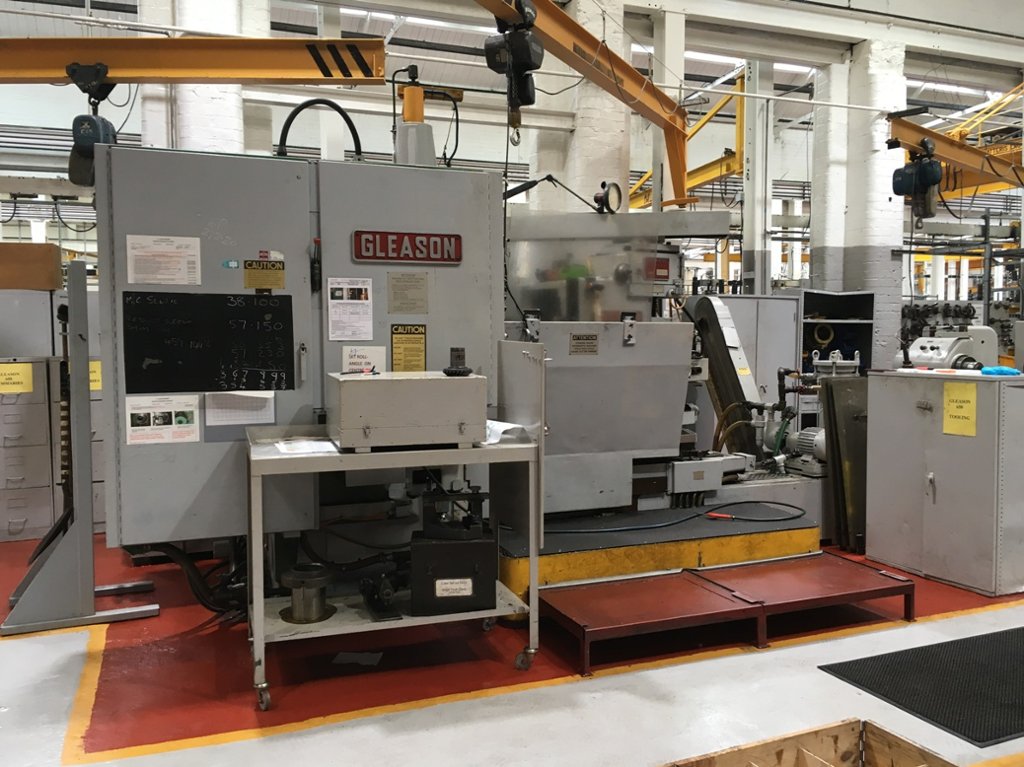

Lot 6: GLEASON 650 Hypoid Bevel Gear Generator

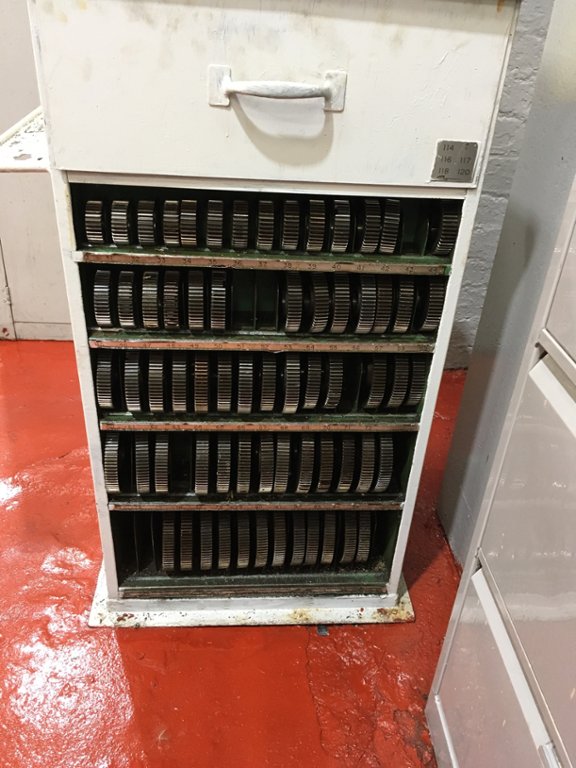

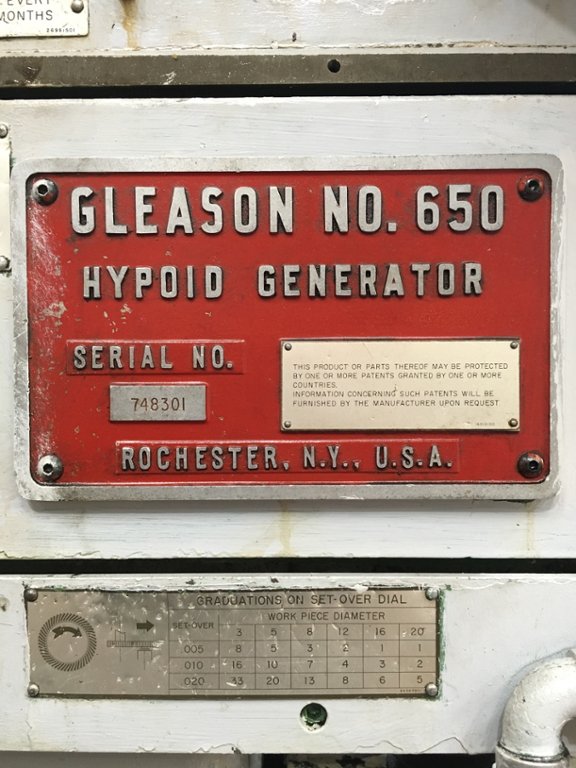

Extreme ratio 10:1.Roof angle range 0º to 90º. Gear diameter – Maximum 34” (863.6mm).Examples of maximum gear pitch diameters with 35º gear spiral angle using 19.7” (500mm) dia. cutter at the following ratios: 1 x 1 – 28.50” (723.90mm). 2 x 1 – 34.00” (863.60mm). 5 x 1 – 34.00” (863.60mm). Maximum radial setting 15'' (381mm). Full depth – Maximum 1.5” (38.1mm).Face width – Maximum 5” (127mm).Coarsest Pitch (module) 1.08 DP (23.5 module).Index Range 5 to 80 inclusive. Diameter of taper hole at large end 6” (152.4mm).Taper per foot 0.75” (19mm). Depth of taper 6” (152.4mm).Diameter through spindle of hole 5” (1270mm). Serial No. 748301. Floor space required 235'' x 123'' x 92.1/2''. Main machine weight 26.7 tons. Accessories 5,000 kgs
