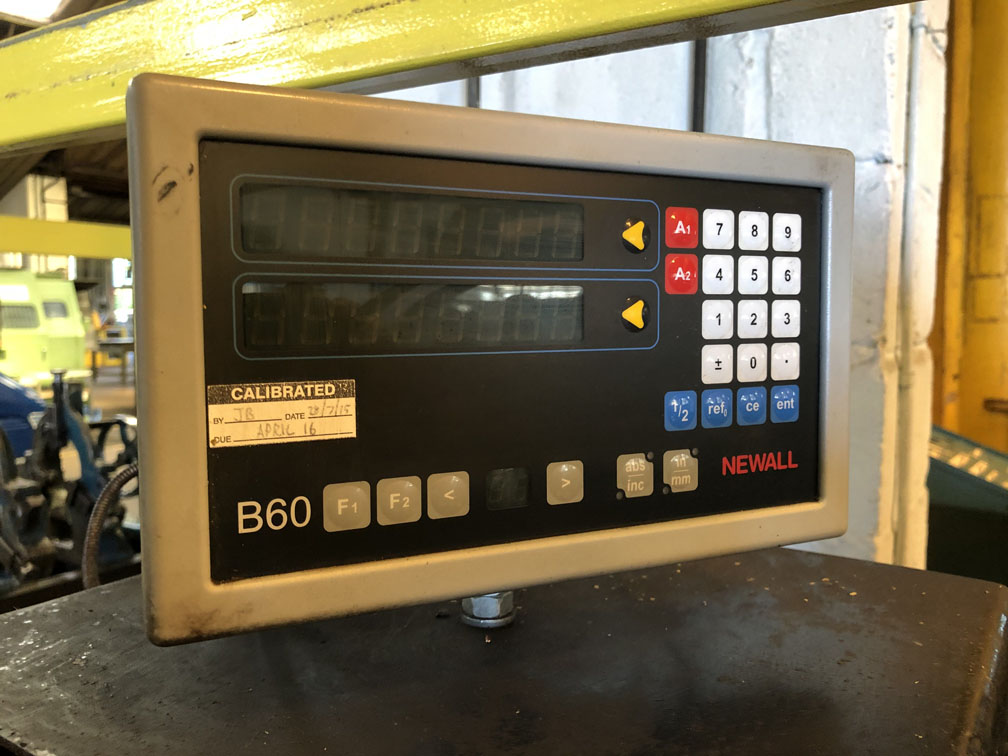

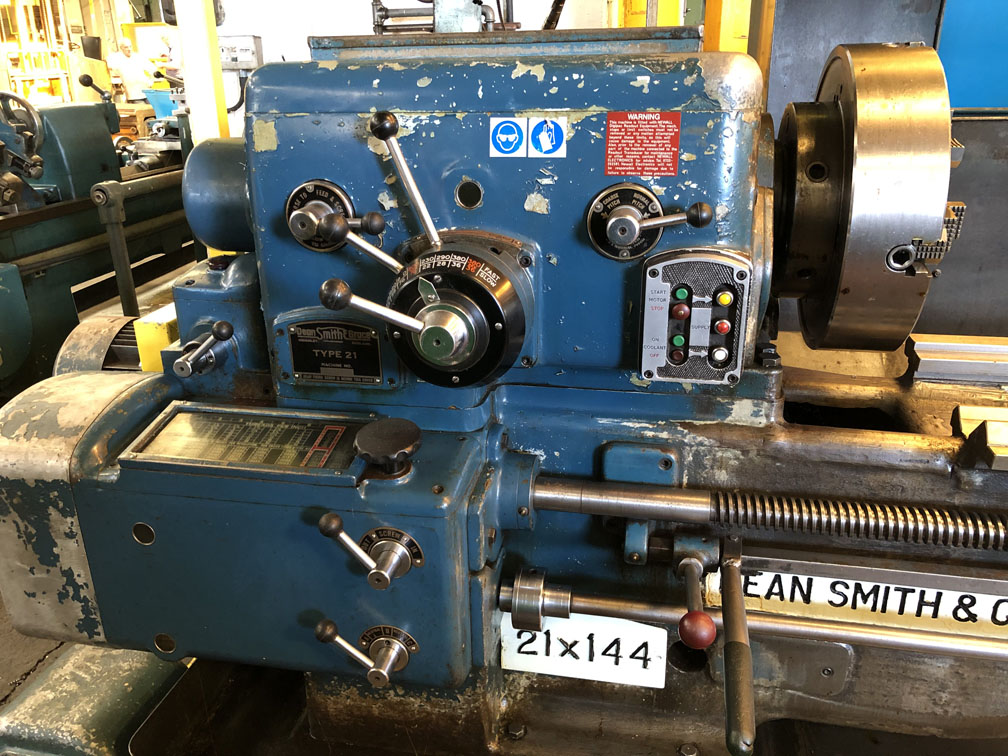

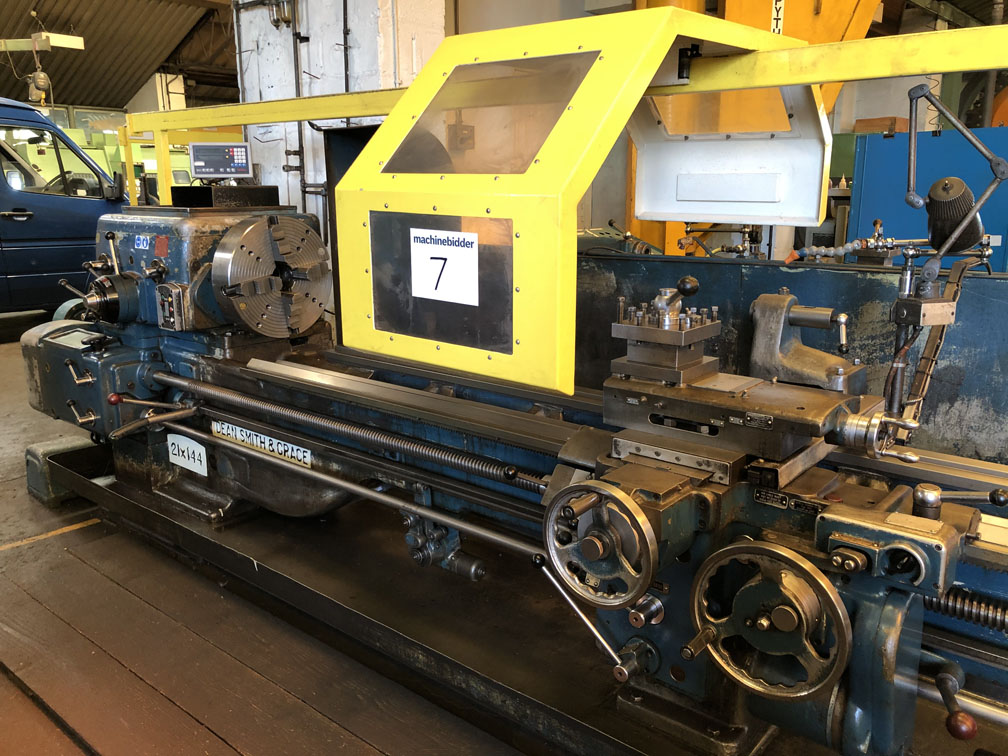

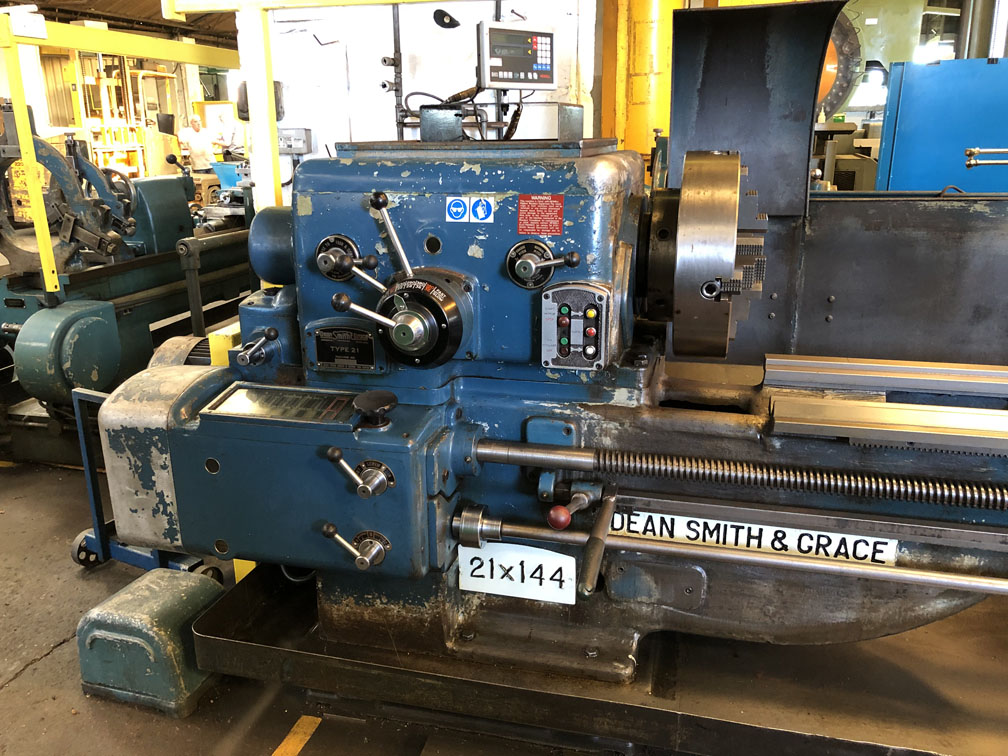

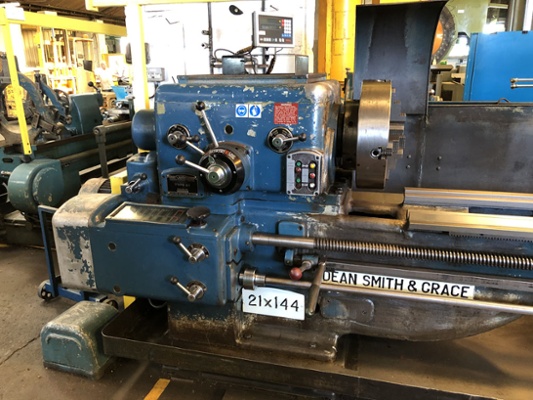

Lot 7 : DEAN SMITH & GRACE Type 21 x 144 Straight Bed Centre Lathe with Newall B60 Digital Readout - SALE AGREED
This lot has been archived
Description

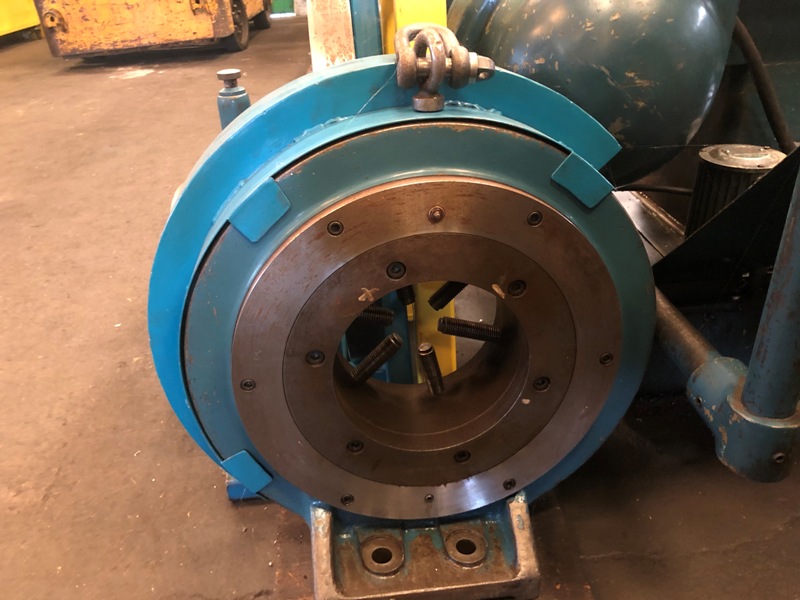

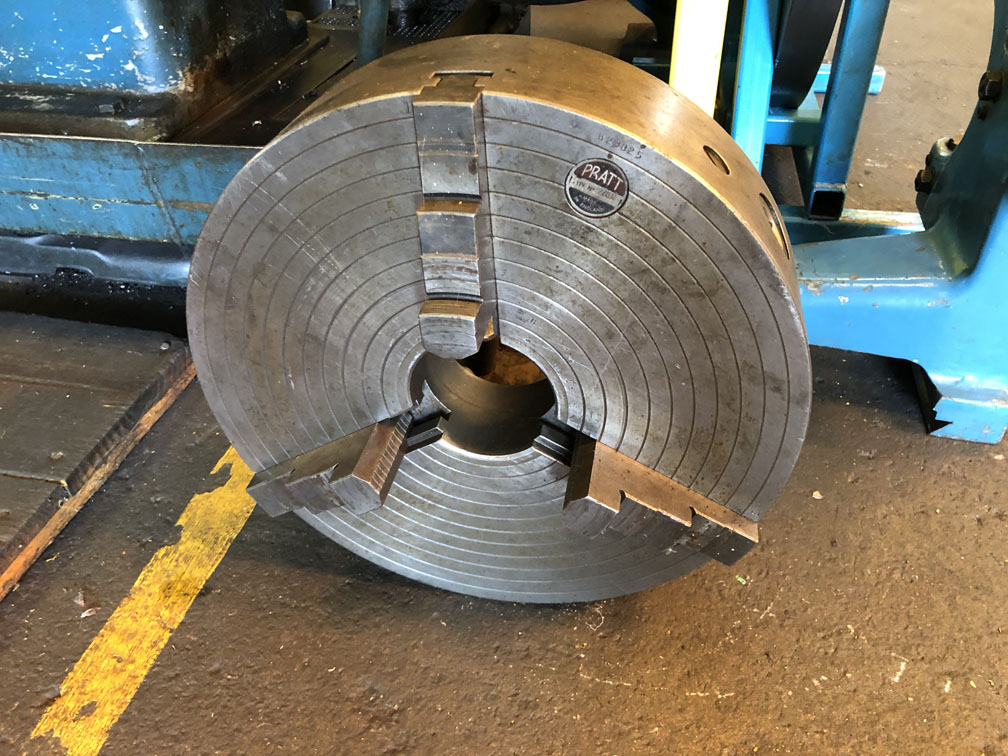

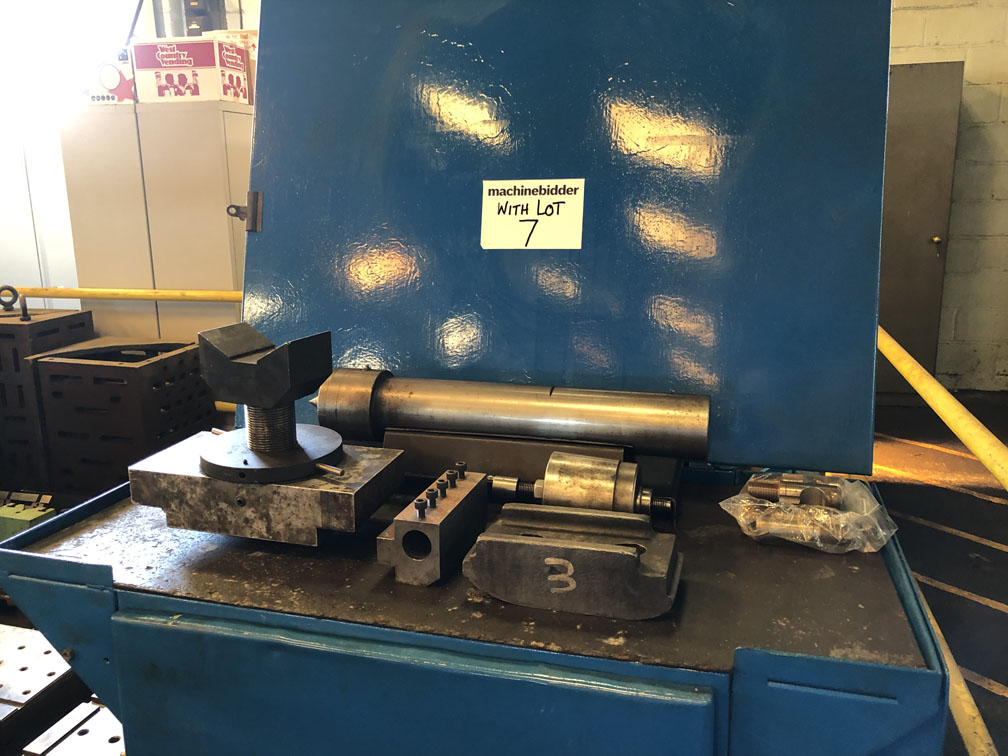

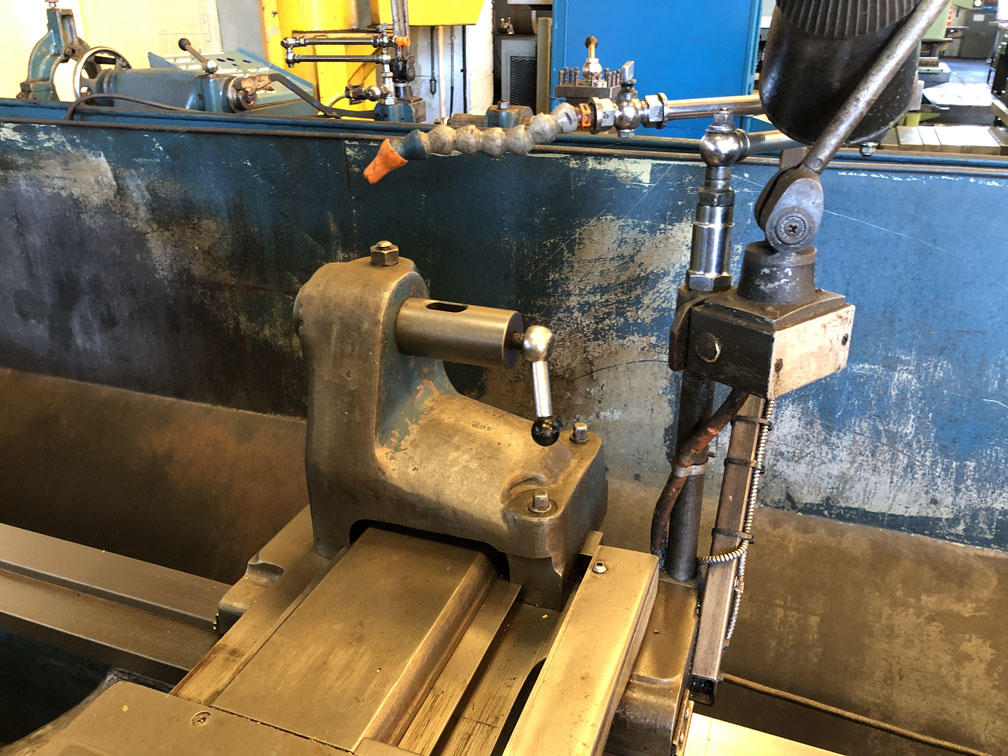

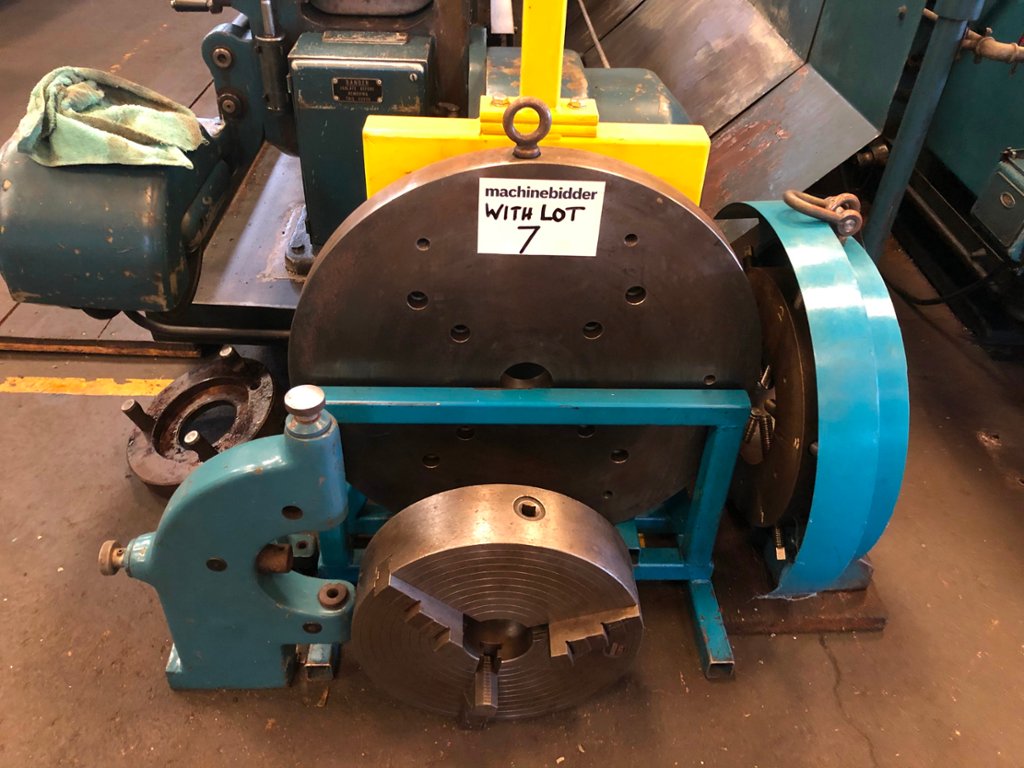

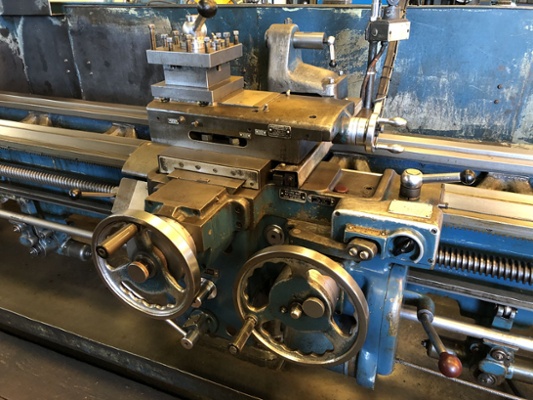

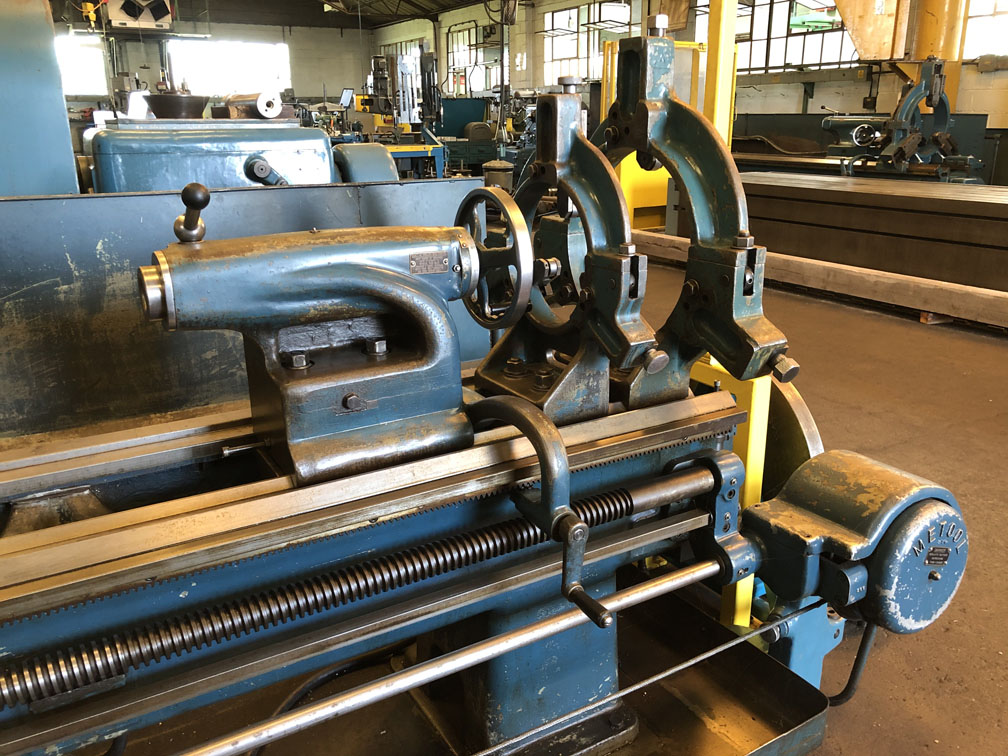

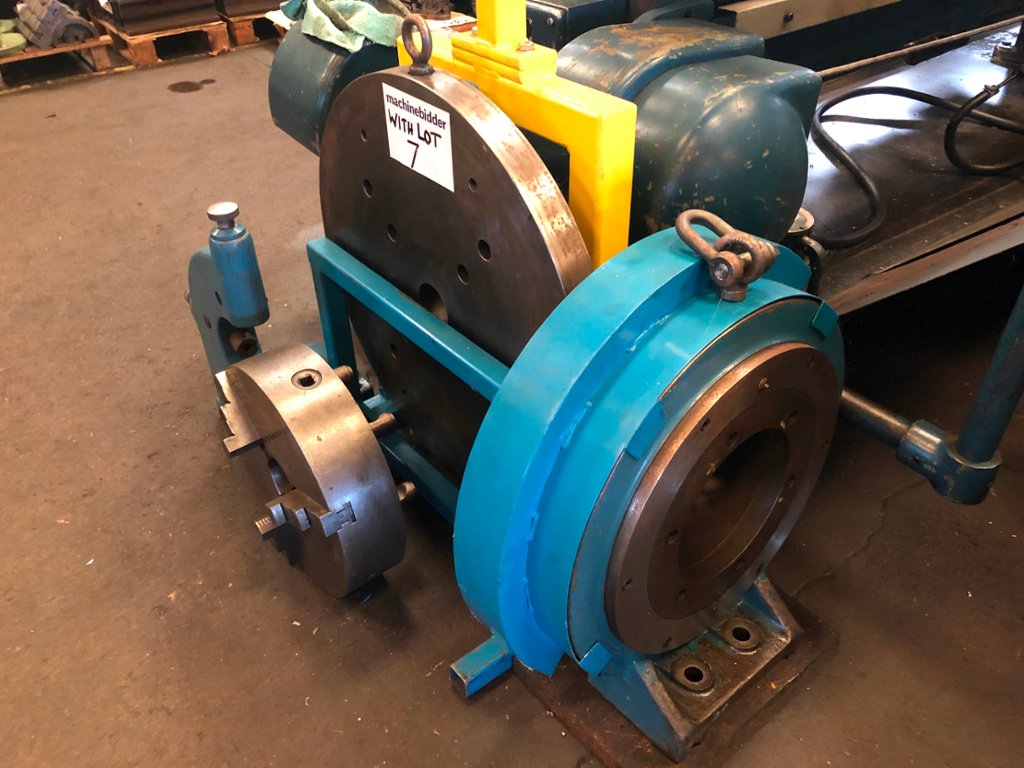

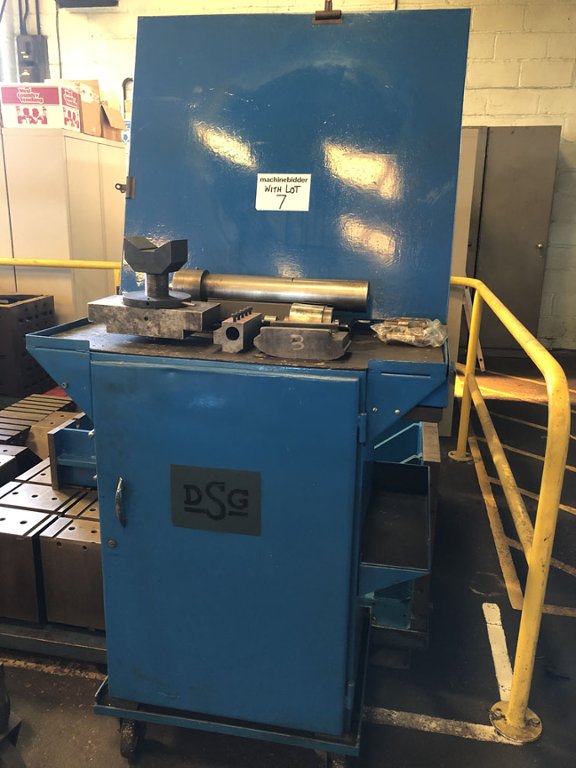

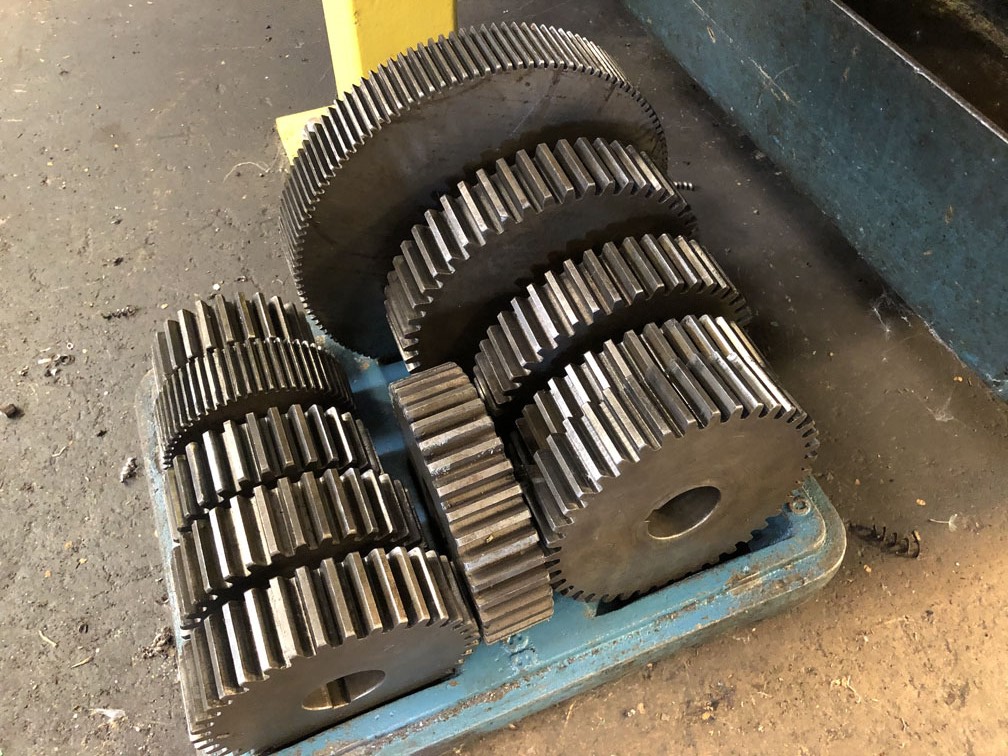

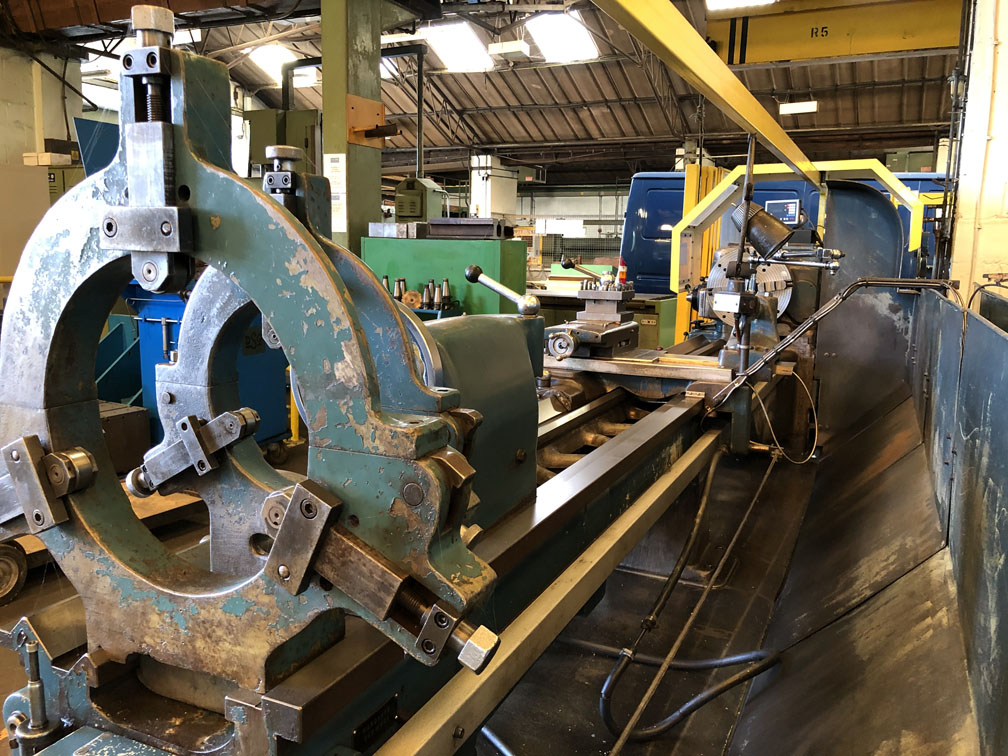

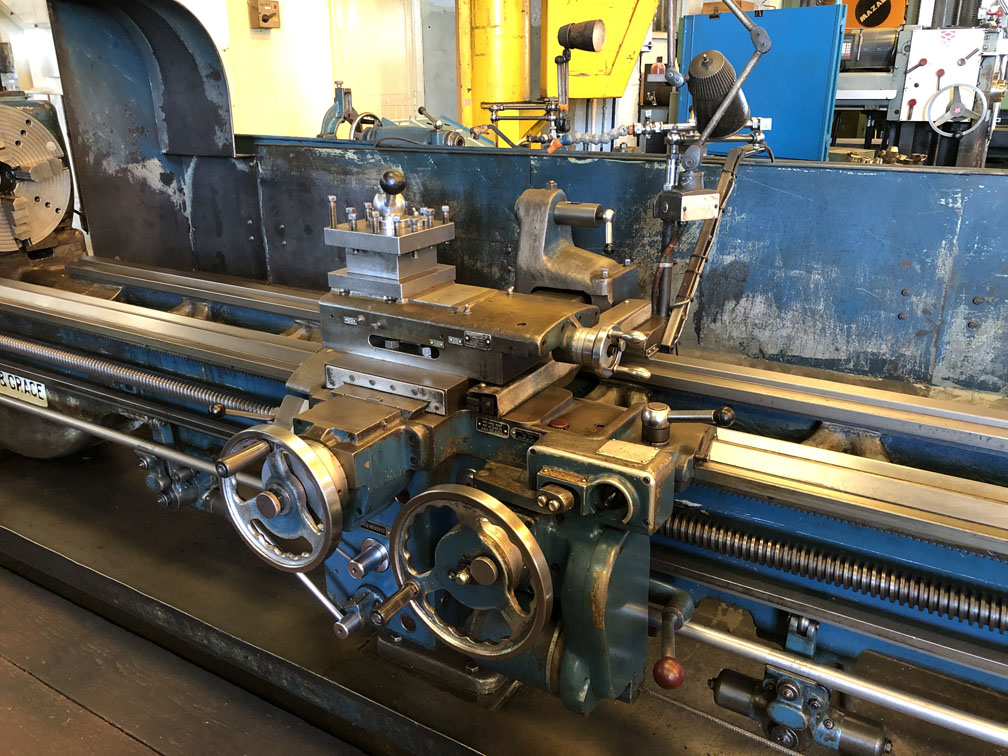

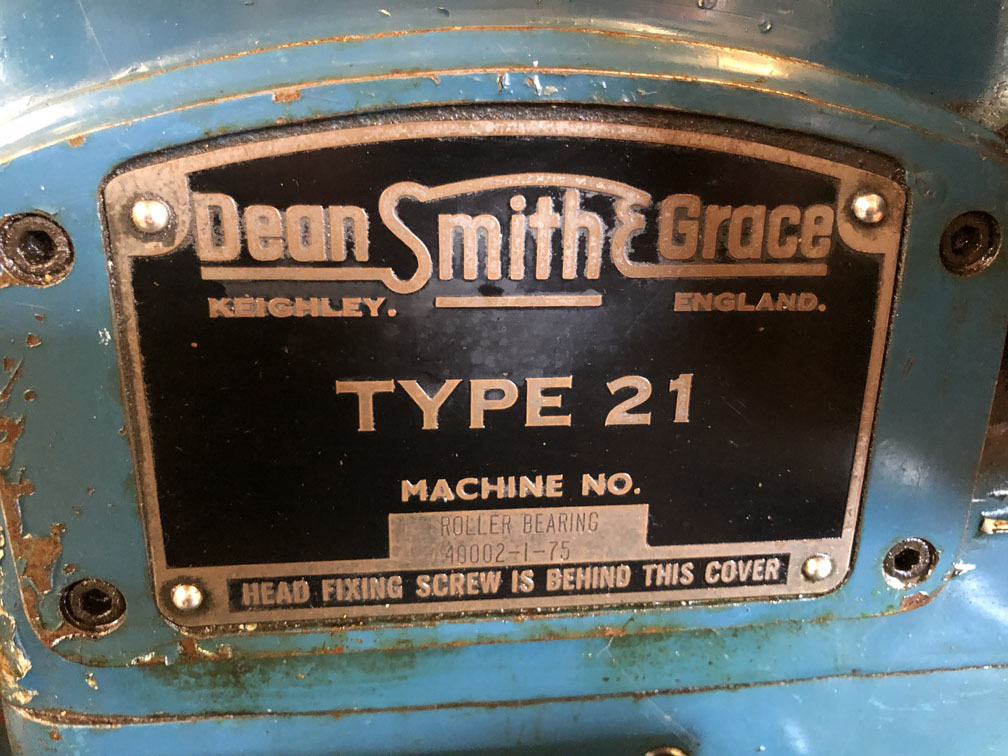

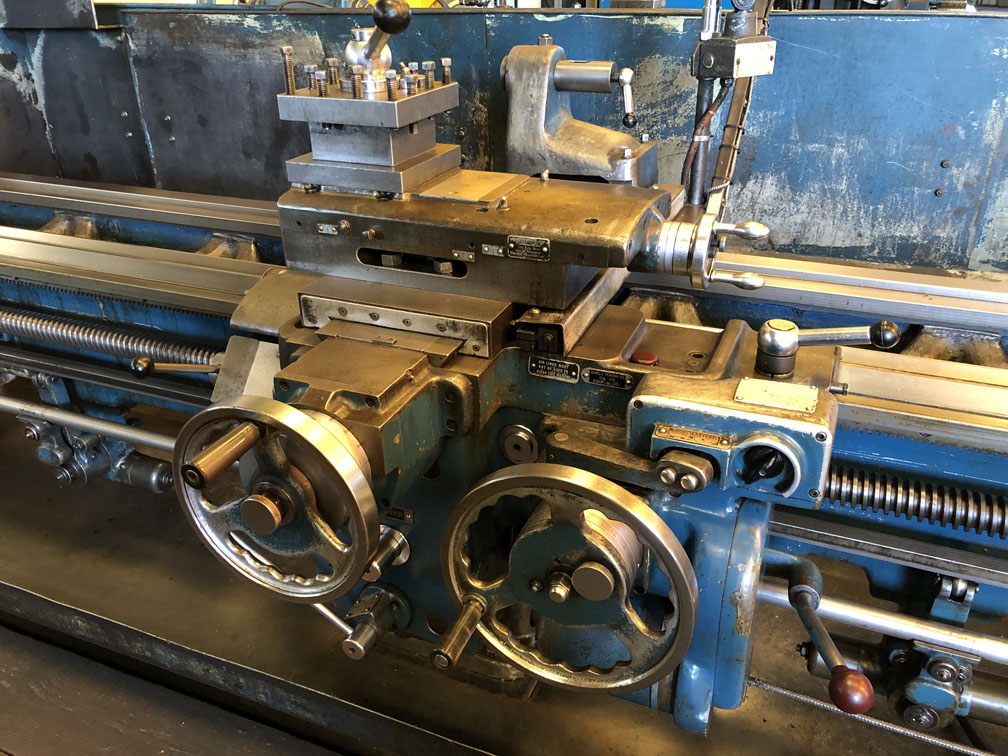

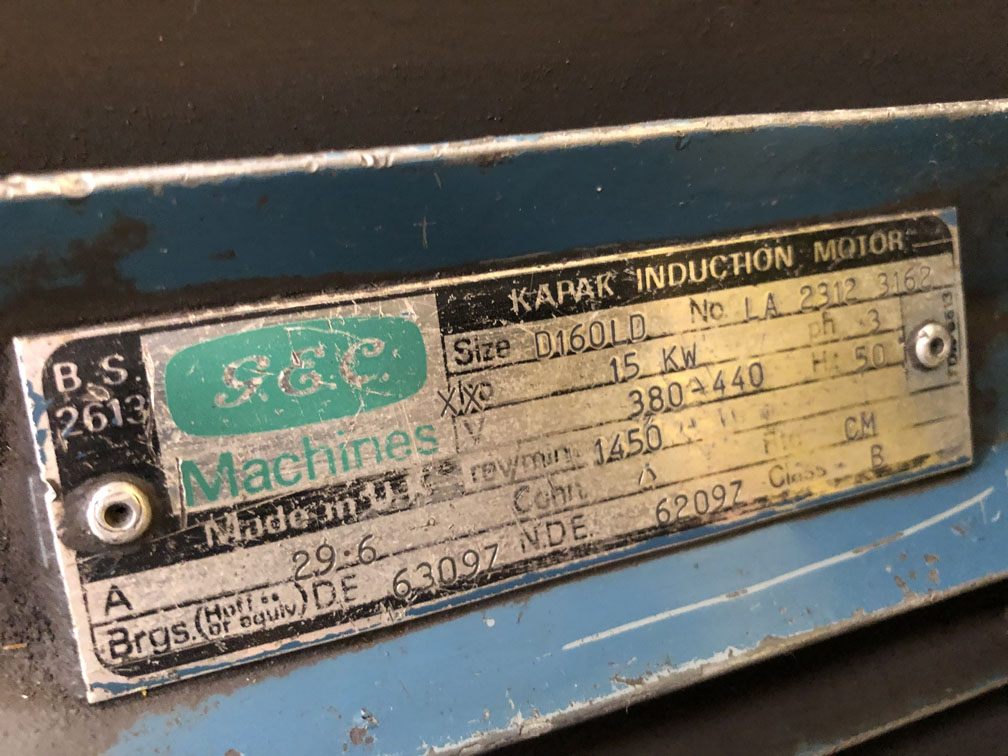

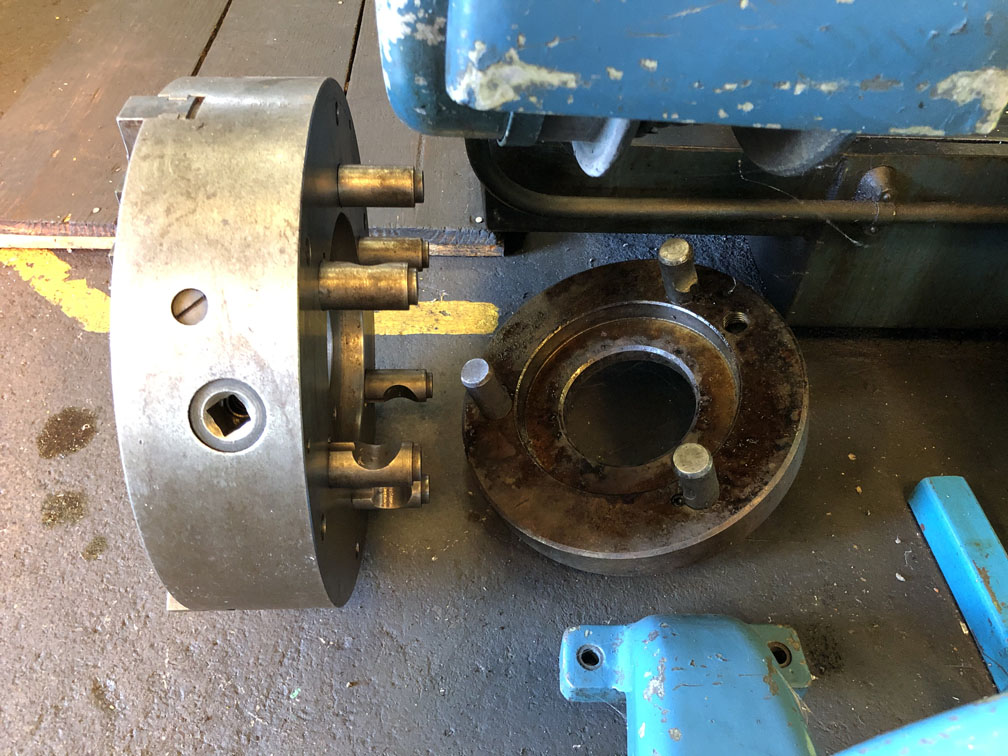

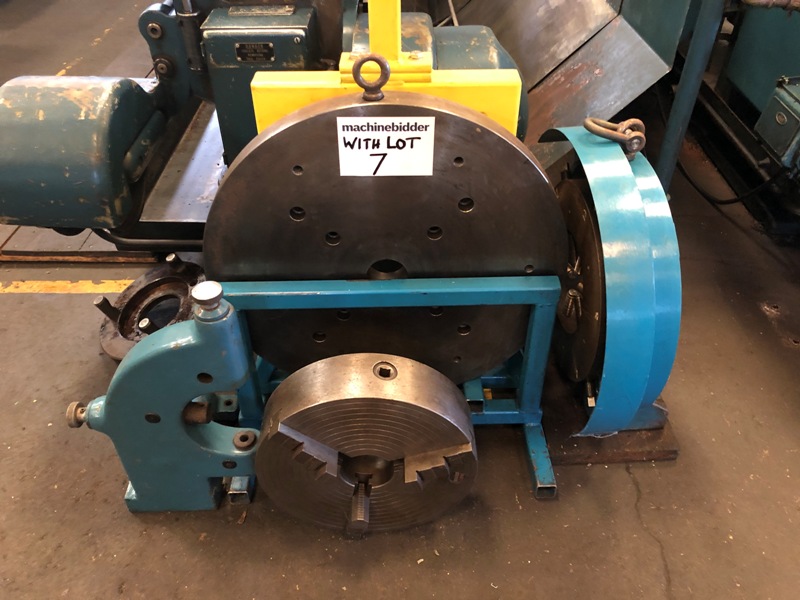

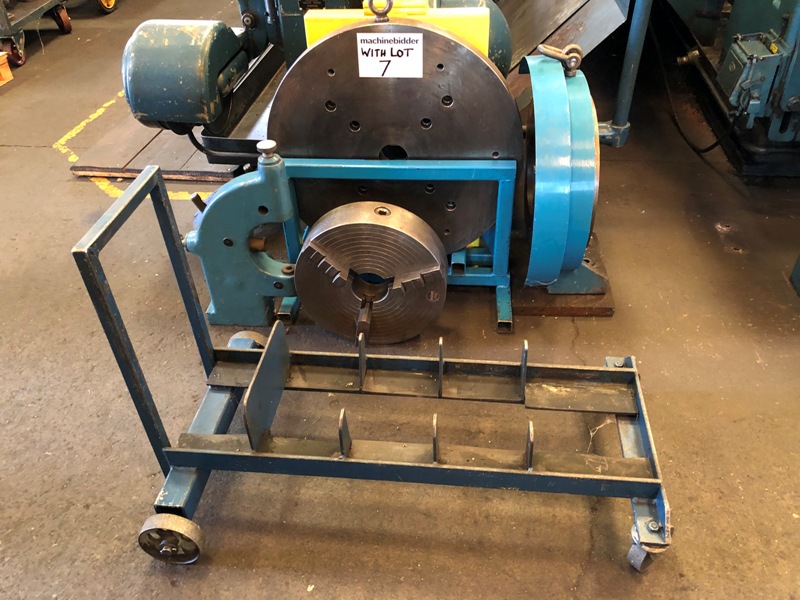

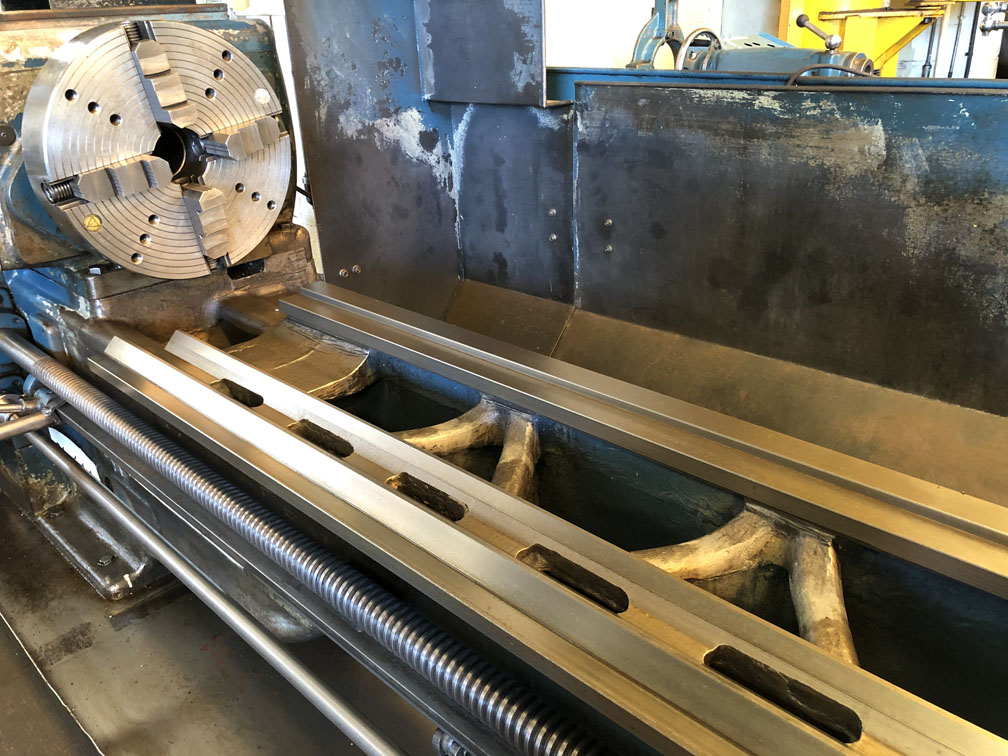

Swing over bed 572mm. Swing over cross slide (with guard) 330mm. Swing over cross slide (without guard) 381mm Distance between centres 3657mm. Spindle speeds 10 - 800 rpm. Spindle bore 92mm. Dual dials. Rapid traverse to saddle. 4 way toolpost. Spindle bush. Drilling attachment. 660mm dia, faceplate. 460mm dia. 4 jaw chuck. 380mm dia. 3 jaw chuck. 300mm dia. Drive plate. 2 x 3 point roller steadies 260mm & 370mm dia. capacities. Windmill steady with 210mm bore and 6 adjustable screws. Spare tailstock quill. Change gears. Steady spares. Camlock stud spares. Coolant. Sliding chuck guard. Main motor 15 kW. Machine serial no. 40623-5-76. Year 1976.
Dimensions 5670mm x 1700mm x 1821mm high.
SALE AGREED
