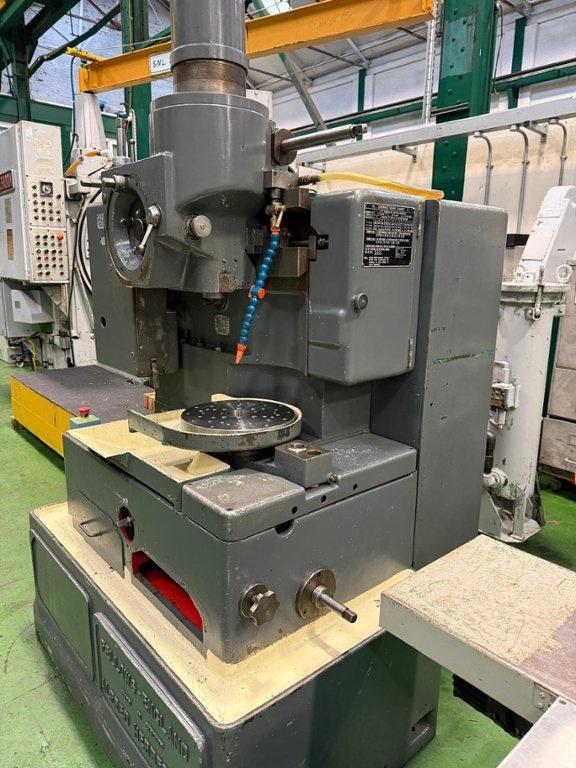

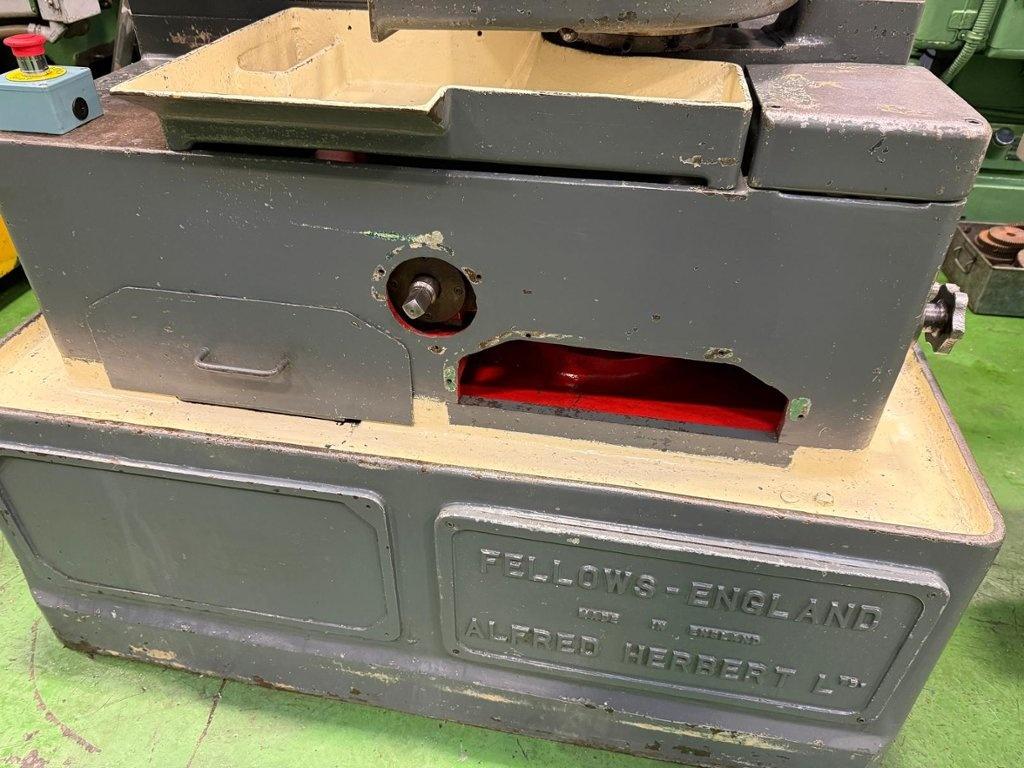

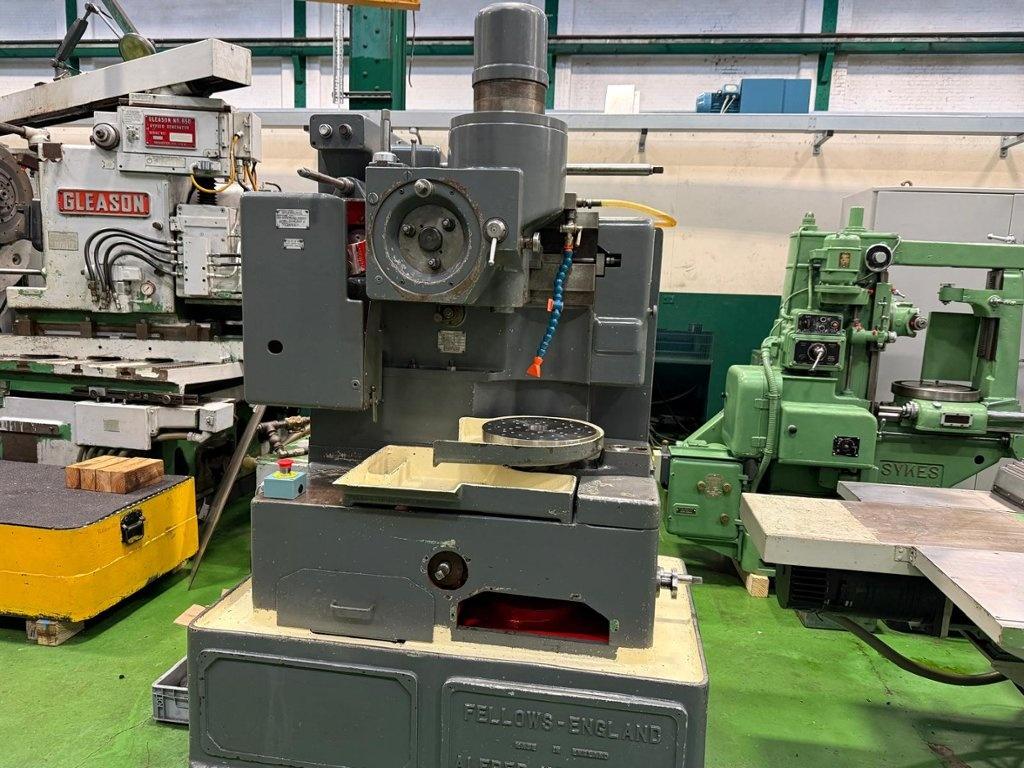

Lot 1: FELLOWS 7125A Gear Shaper with Change Gears Number of watchers: 2

Item information

Description

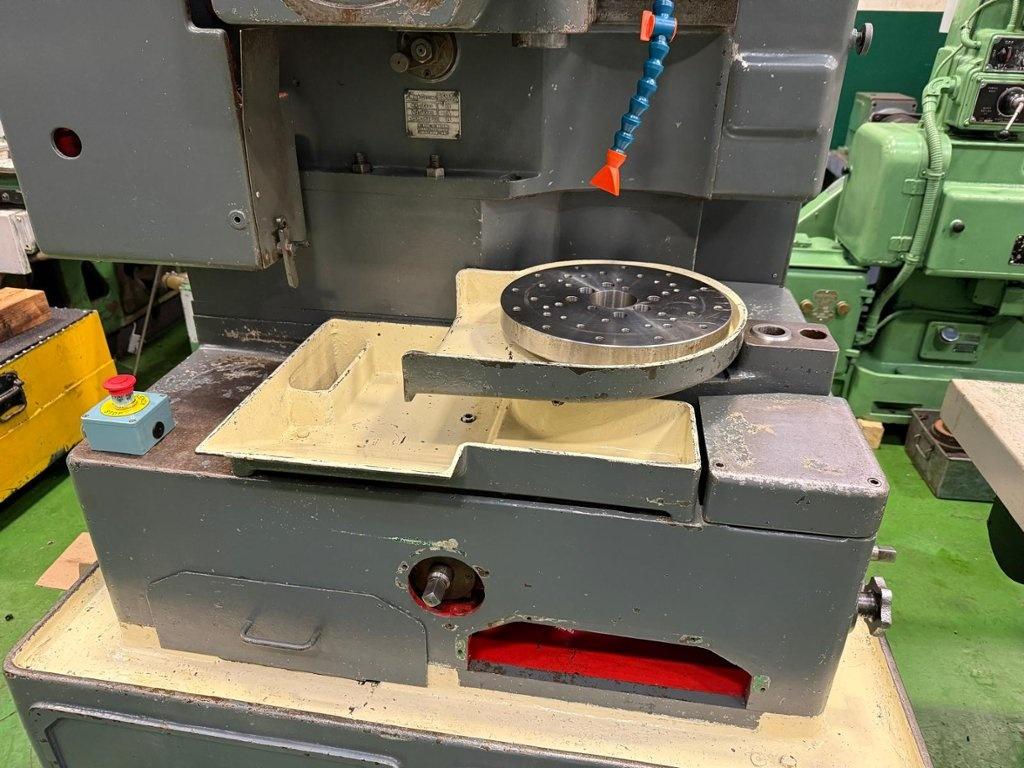

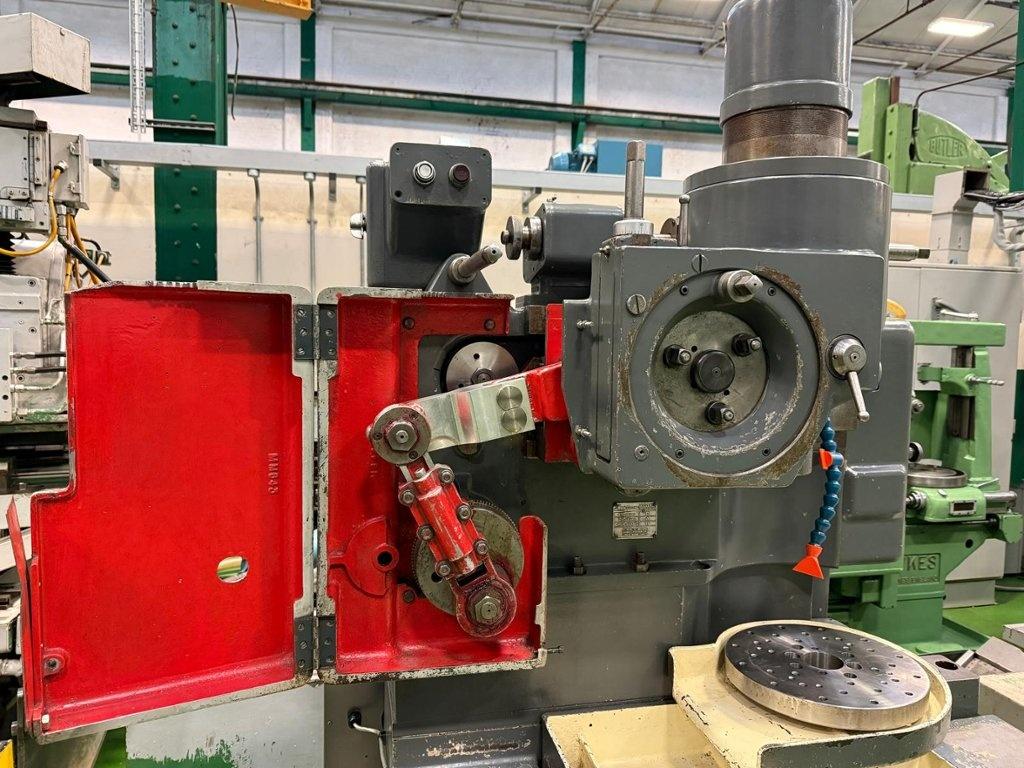

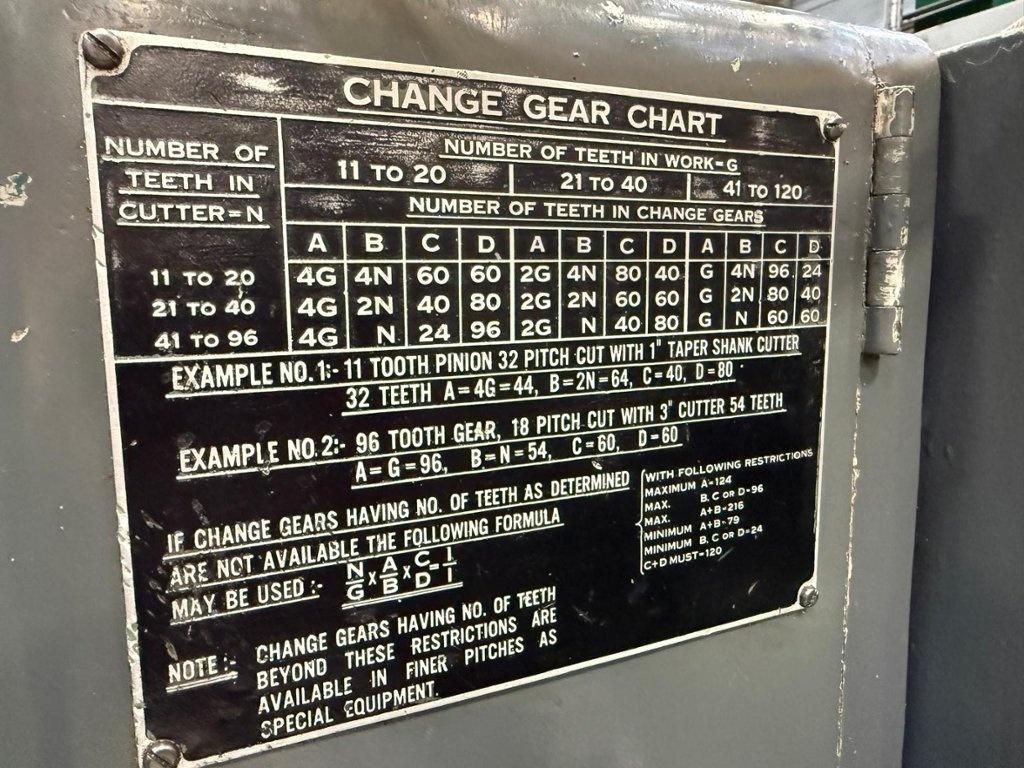

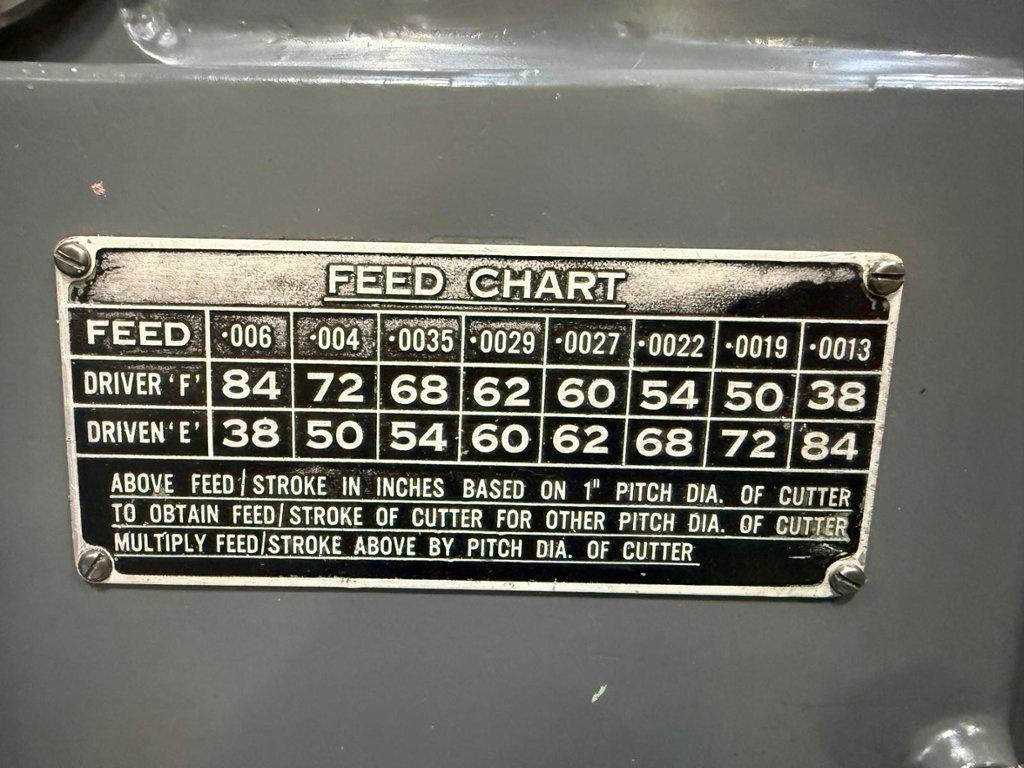

Maximum Pitch diameter – External Spur & Helical Gear 250mm @ 4. ¼’’ Module 10’’ @ 6 D.P. Maximum Pitch diameter Internal Spur & Helical 152mm @ 4.1/4’’ Module 6’’ @ 6 D.P. Maximum face width 51mm (2’’). Maximum helix angle 45°. No. & range of cutting speeds (6) 156/515 strokes per minute. Cutter feeds per stroke (8) 0.06/0.013 per cm of cutter diameter 0.006’’/0.0013’’ per inch of cutter diameter. Motor power 1.1 kW (960rpm) 1.5hp (960rpm). Maximum stroke of cutter spindle 50mm. Cutter spindle dia.70mm. Dia. of work table 140mm. Dia. of hole in table 53mm.Complete with change gears. One & two cut cams. Change Gears.Machine dimensions L x W x H 1295mm (51’’) x 1219mm (48’’) x 1829mm (72’’). Approximate weight 2032kg
