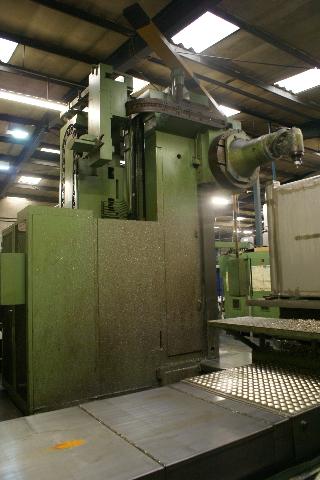

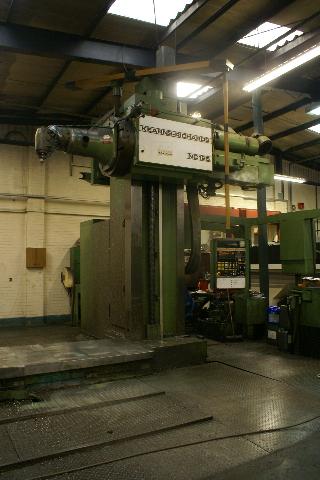

Lot 1: Kearns Richards NC125 CNC Twin Pallet Horizontal Borer
This page will update every 3 seconds. Bidding will be extended on individual lots if bids are placed within 10 minutes of the items end time.
Bidding Information
Description

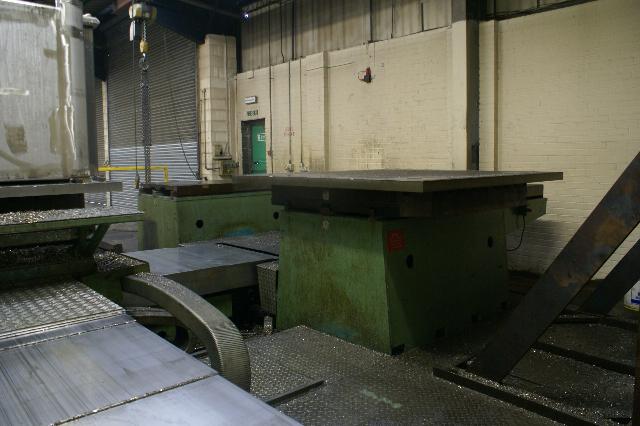

Machine Serial No. 7295. Spindle dia. 125mm. Spindle Taper 50 ISO. Table Sizes 2000mm x 1800mm. Table Loading 8,000kgs (each Pallet).Spindle Axial Travel 750mm.Milling Quill Nose dia. 60 ISO. Facing Head dia. 900mm. Facing Head Capacity 1280mm. Facing Head Slide Traverse 190mm.
Speeds: Infinitely Variable (2 Ranges)
Traversing Spindle & Milling Quill: 5 - 164 epm & 165 - 1120 rpm
Facing Head: 1 - 32 rpm & 33 to 225 rpm
Feeds: Independent, Infinitely Variable Feed Drives
Table Longitudinally & Transversely, Also Spindle Frame Vertically & Spindle :
1 - 3000mm/min
Facing Slide Radially: 1 - 1,000 rpm
Table Feed: 0.001 - 3 rpm
Rapid Traverses
Table Longitudinally & Transversely, Also Spindle Frame Vertically & Spindle: 6000mm/min
Facing Slide Radially: 2000mm/min
Main Spindle Drive: 30 Kw (40 HP)

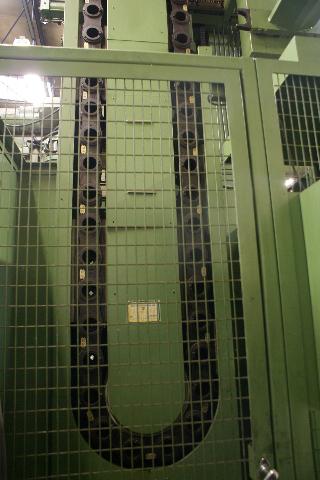

Toolchanger: 40 ATC Tool dia. (Full Compliment) 155mm. (Part Compliment) 350mm x 480mm. Tool Weight: 35 Kgs
