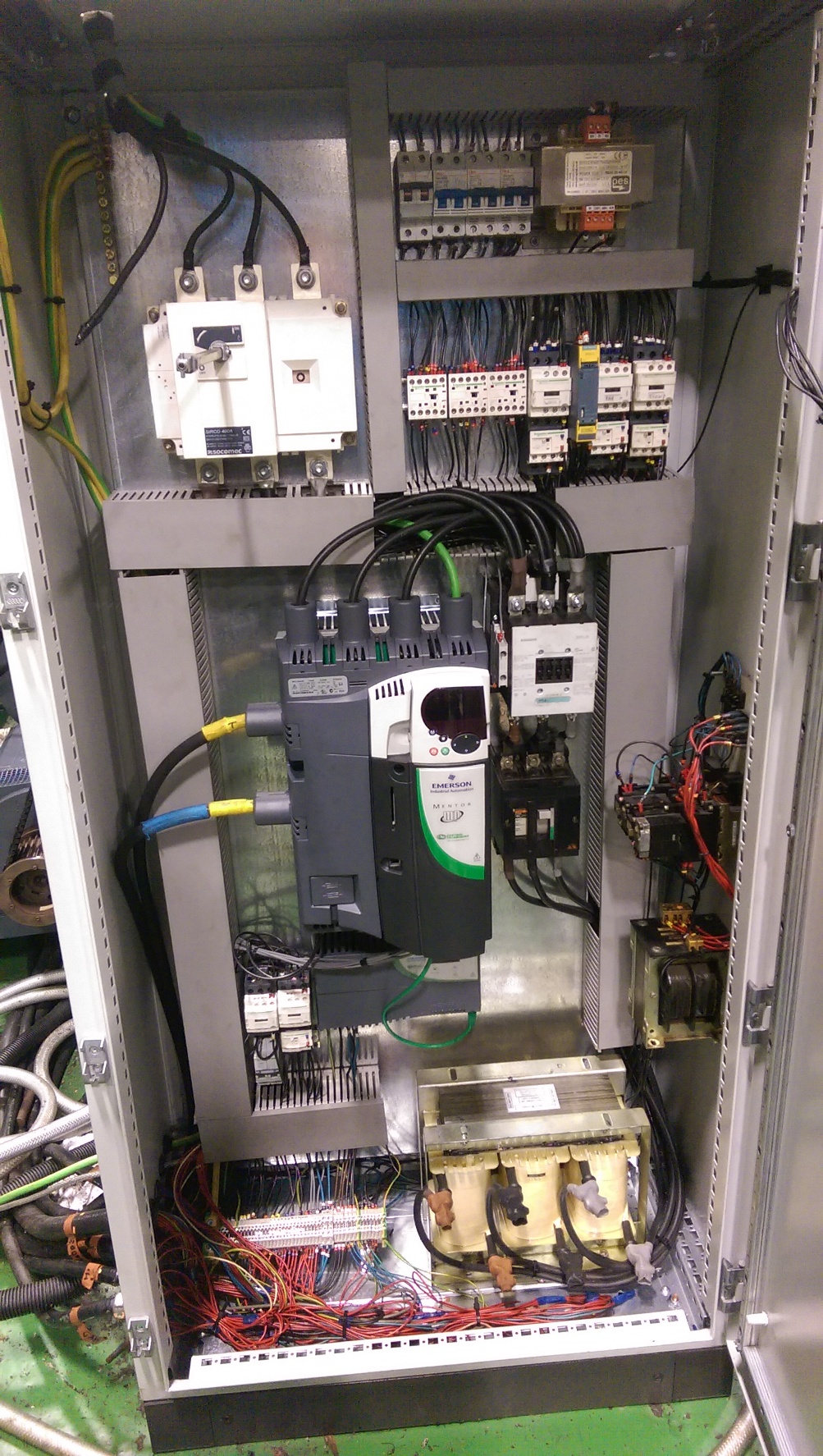

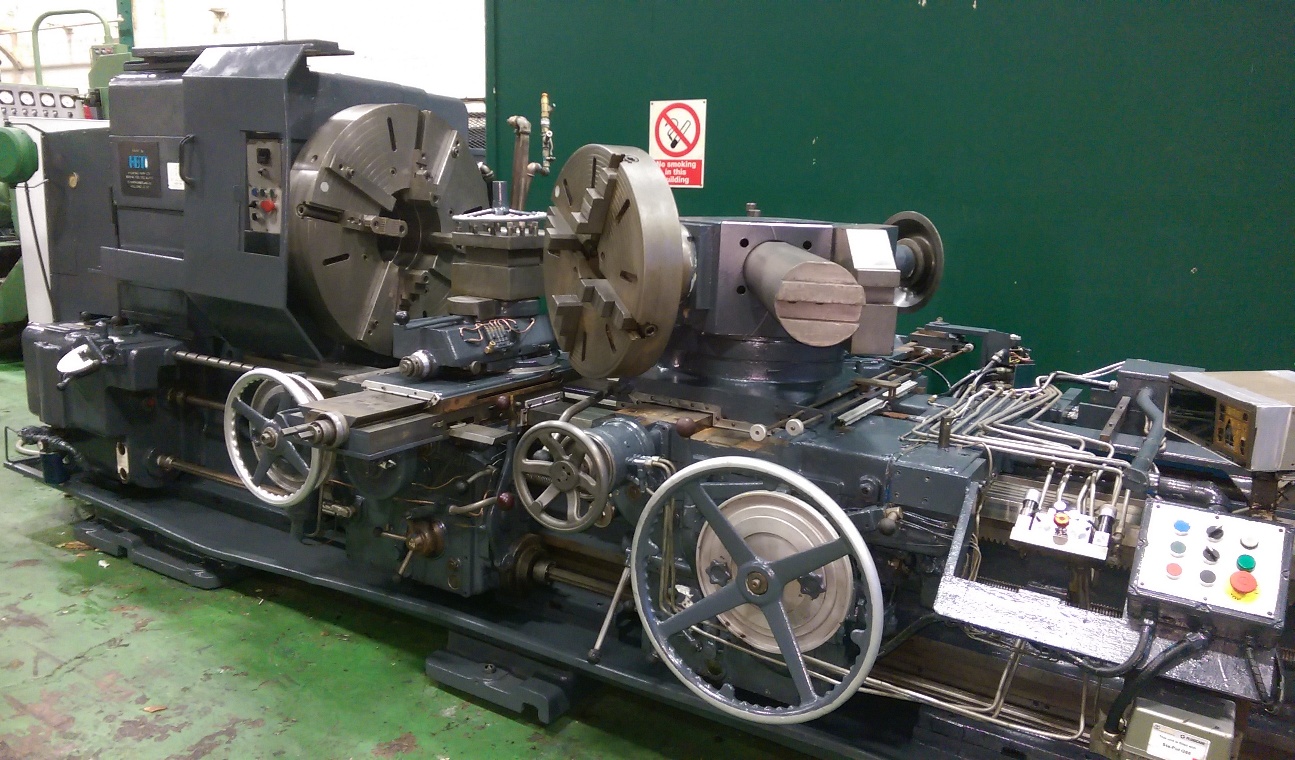

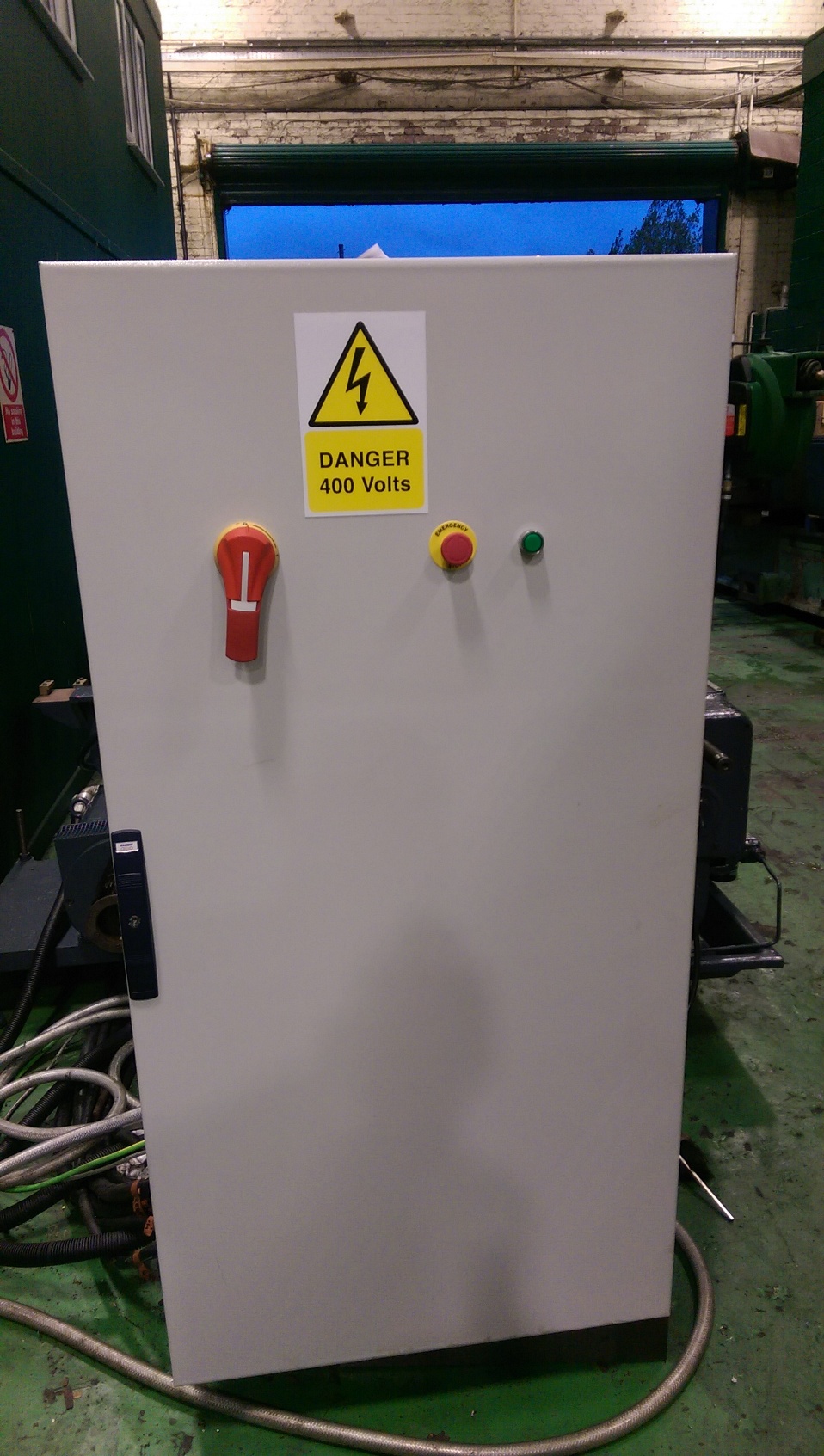

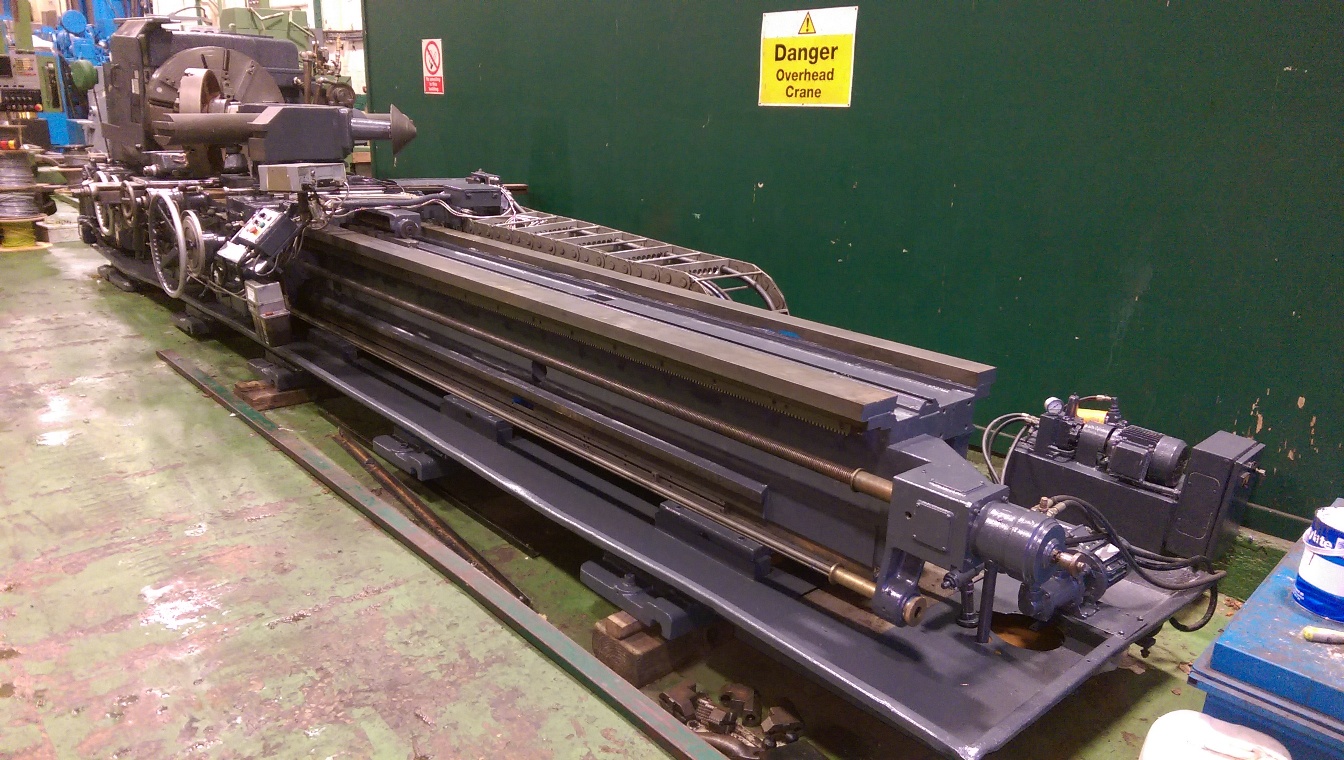

Lot 15: GISHOLT 5L Heavy Duty Turret Lathe - Completely Rewired with New Drive

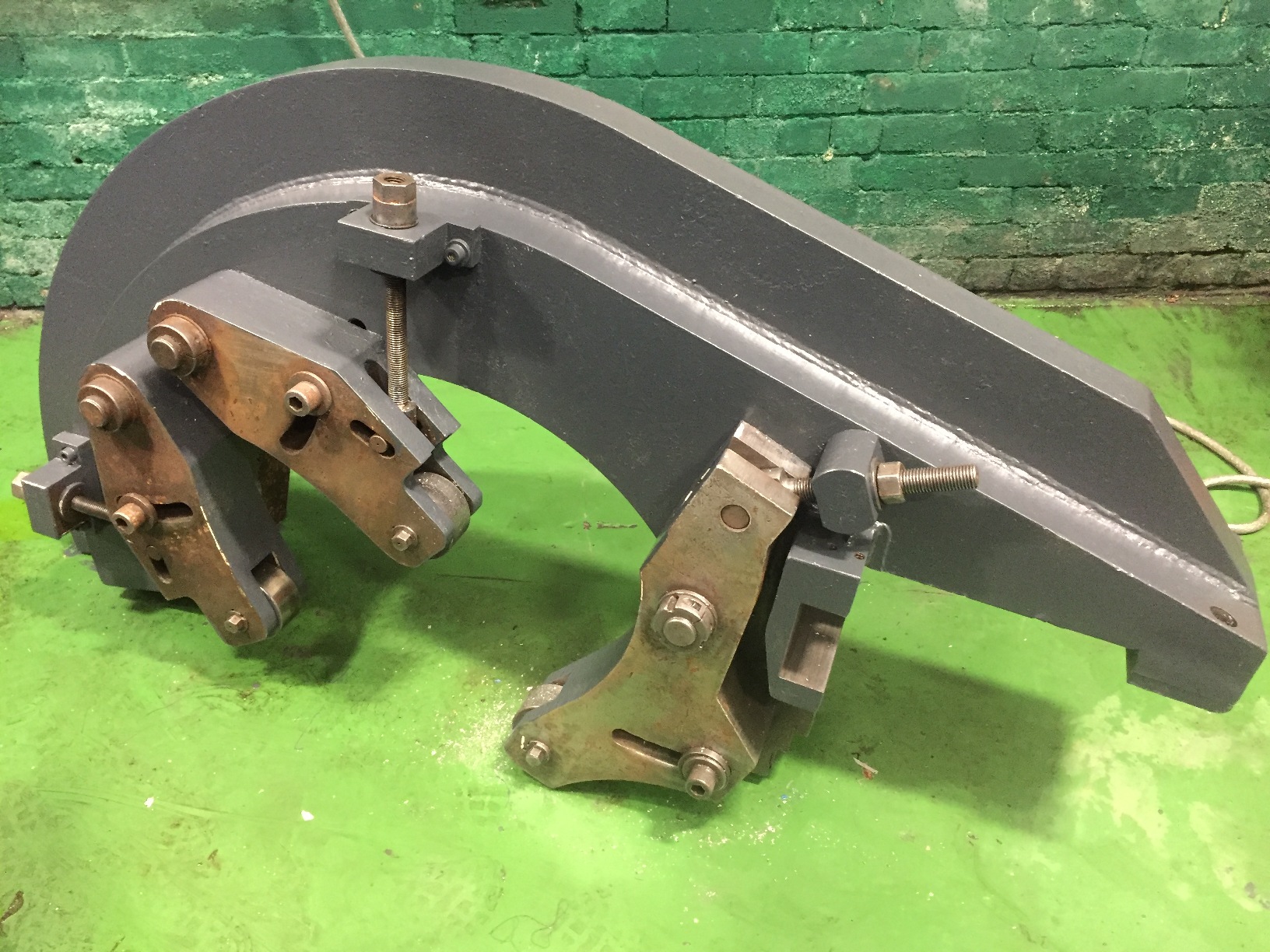

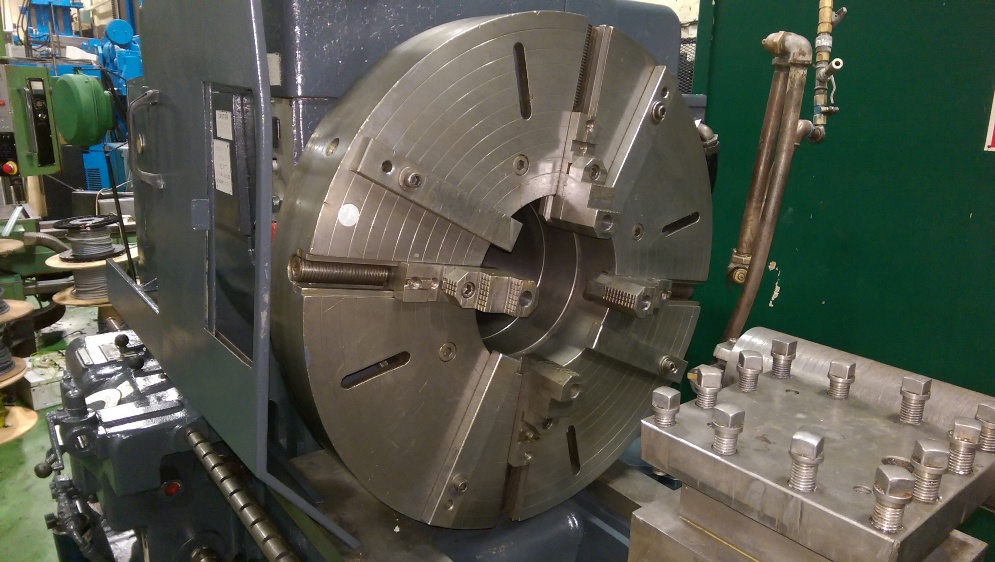

Year of manufacture 1975 Maximum swing over bed 39.1/2” Maximum swing cross slide 39.1/2” Maximum distance between centres 160” Spindle drive 50.4 kW Spindle speeds 6-340 rpm (inf.var) Spindle bore 12.1/2” Screwcutting 5/8” – 36 tpi Feeds .003"-.088"/rev Equipment 36” 4 jaw chuck 24” 4 jaw chuck (turret) 2 x Steadies 14” – 29.1/2” capacity Taper turning 20° inclusive angle Profile turning (max) 29.1/2” long x 13” dia. (Turret Only) Digital readout fitted to turret Coolant Selection of turret tooling & boring bars

LOCATED AT UNIT A, ACORN INDUSTRIAL ESTATE, OLDHAM, OL1 3NE

PLEASE NOTE

THIS ITEM CAN BE LOADED FREE OF CHARGE TO A FLAT VEHICLE OR STANDARD EUROTRAILER.
